Minimize the Pairwise Distance Ratio for N Points#
Description: Minimize the pairwise distance ratio of N points with FICO Xpress
Tags: AMPLPY, highlights, nonlinear, quadratic, global optimization, local optimization, trigonometric, xpress
Notebook author: Gleb Belov <gleb@ampl.com>
Reference:
FICO Xpress nonlinear examples. https://www.fico.com/fico-xpress-optimization/docs/latest/examples/mosel/NonLinear/, accessed Feb 27, 2026.
AMPL Xpress documentation. https://dev.ampl.com/solvers/xpress.
# Install dependencies
%pip install -q amplpy pandas matplotlib
# Google Colab & Kaggle integration
from amplpy import AMPL, ampl_notebook
ampl = ampl_notebook(
modules=["xpress"], # modules to install
license_uuid="default", # license to use
) # instantiate AMPL object and register magics
Overview#
We consider a minimum pairwise distance ratio problem from [1]. We shell solve it with the Xpress local and global optimizers. For the local optimizer we will see how important it is to provide a reasonable starting point.
Use %%ampl_eval to evaluate AMPL commands and declarations#
%%ampl_eval
# Parameters
param N default 12; # Number of points to be placed, eg 12, 14 or 16
param D default 3; # Number of dimensions: 2, 3, ...
# Public declarations
set POINTS := 1..N;
set DIMS := 1..D;
# Variables
var x {POINTS, DIMS} >=0 <=1; # N points in D-dimensional space
var t_min >=0 <=1; # Variable for min squared distance
# Constraints on distances
s.t. DistLB {i in POINTS, j in POINTS: i<j}:
sum {k in DIMS} (x[i, k] - x[j,k])^2 >= t_min;
s.t. DistUB {i in POINTS, j in POINTS: i<j}:
sum {k in DIMS} (x[i, k] - x[j,k])^2 <= 1;
# We wish to minimize 1/t_min, which is invariant for scaling.
# Instead, we can improve the formulation by
# maximizing t_min (with this reformulation we are turning the problem
# from a general nonlinear problem into a non-convex quadratic programming
# problem).
maximize Obj: t_min;
Load data directly from Python data structures using amplpy#
N = 12
D = 3
ampl.param["N"] = N
ampl.param["D"] = D
Local optimization: solve with Xpress SLP#
ampl.option["solver"] = "xpress"
ampl.option["mp_options"] = "outlev=1 alg:nlpsolver=1 alg:localsolver=0"
ampl.snapshot(
"min_pairw_snapshot_0.run"
) # Debug feature, saves AMPL state including the model
ampl.solve()
XPRESS 9.8.0 (46.01.01): tech:outlev = 1
alg:nlpsolver = 1
alg:localsolver = 0
AMPL MP initial flat model has 37 variables (0 integer, 0 binary);
Objectives: 1 linear;
Constraints: 132 quadratic;
AMPL MP final model has 37 variables (0 integer, 0 binary);
Objectives: 1 linear;
Constraints: 132 quadratic;
Original problem size
linear: 132 rows, 37 columns, 66 linear coefficients
quadratic: 0 in obj, 132 rows, 1188 in rows
Nonlinear presolve
converted 66 quadratic matrices to formulas
simplify removed 792 tokens
creating 66 '+' clusters removed 396 tokens
Presolved problem size
linear: 132 rows, 38 columns, 66 linear coefficients
quadratic: 0 in obj, 66 rows, 594 in rows
nonlinear: 66 coefficients, 2310 tokens
396 mul 0 div 0 sqrt
0 exp 0 log 396 pow
Problem is nonlinear presolved
FICO Xpress v9.8.0, Hyper, solve started 17:29:47, Mar 3, 2026
Control settings used:
INPUTTOL = 0
LOCALSOLVER = 0
NLPSOLVER = 1
Maximum expanded nl-formula size: 35 (row 'R67')
Total tokens: 2310
Quadratic formula size: 594
8 parallel calculation threads
Jacobian: symbolic differentiation
66 base AD formula, 28 average complexity
396 in the Jacobian, 7 average complexity
Initial point objective: 1.0000
Absolute / relative validation: 1.000 / 1.000
Maximizing problem using Xpress-SLP
Xpress-SLP Augmentation Statistics:
Columns:
36 implicit SLP variables
36 delta vectors
66 penalty error vectors (66 positive, 0 negative)
Rows:
66 nonlinear constraints
36 update rows
1 penalty error rows
Coefficients:
528 non-constant coefficients
It LP NetObj ValObj ErrorSum ErrorCost Validate KKT Unconv Ext Action T
1 O 2.999E-05 2.9E-05 .00 -2.5E-11 2.9E-05 0 0 * 0
2 O 5.998E-05 5.9E-05 .00 -8.9E-10 5.9E-05 0 0 * 0
3 O 5.999E-05 5.9E-05 .00 -1.1E-11 5.9E-05 0 0 * 0
4 O 5.998E-05 5.9E-05 .00 -8.9E-10 5.9E-05 0 0 * 0
5 O 5.999E-05 5.9E-05 .00 -1.1E-11 5.9E-05 0 0 V* 0
6 O 5.998E-05 5.9E-05 .00 -8.9E-10 5.9E-05 0 0 V* 0
7 O 5.999E-05 5.9E-05 .00 -1.1E-11 5.9E-05 0 0 V* 0
8 O 5.998E-05 5.9E-05 .00 -8.9E-10 5.9E-05 0 0 V* 0
9 O 5.999E-05 5.9E-05 .00 -1.1E-11 5.9E-05 .00 0 0 * 0
Returning final converged solution
Xpress-SLP stopped after 9 iterations. 0 unconverged items
Problem solved using Xpress-NLP SLP
Converged on objective function with no unconverged values in active constraints
No unconverged values in active constraints
Problem is nonlinear postsolved
Heap usage: 1274KB (peak 7751KB, 96KB system)
Observed Lipschitz constant: 1.00E-05
Final NLP objective (local optimum) : 5.999487782228242e-05
Max validation error (abs/rel) : 5.99E-05 / 5.99E-05
Max primal violation (abs/rel) : 5.999e-05 / 5.999e-05
Observed primal integral : 34.416%
Total / SLP / LP time : .077s / .065s / .058s
Work / work units per second : 0.00 / 0.06
*** Search completed ***
XPRESS 9.8.0 (46.01.01): limit, feasible solution; objective 5.999486616e-05
6 barrier iterations
------------ WARNINGS ------------
WARNING: "Tolerance violations"
Type MaxAbs [Name] MaxRel [Name]
* quadratic con(s) 6E-05 -
*: Using the solver's aux variable values.
Documentation: mp.ampl.com/modeling-tools.html#automatic-solution-check.
Retrieve solution and visualize#
import matplotlib.pyplot as plt
import numpy as np
def display_solution(ampl):
print("\nAMPL solve result:", ampl.solve_result, " code:", ampl.solve_result_num)
print("Objective value:", ampl.get_objective("Obj").value(), "\n")
df_x = ampl.var["x"].to_pandas().unstack().transpose()
display(df_x)
fig = plt.figure()
ax = fig.add_subplot(projection="3d")
ax.scatter(df_x.iloc[0, :], df_x.iloc[1, :], df_x.iloc[2, :])
ax.set_xlabel("X")
ax.set_ylabel("Y")
ax.set_zlabel("Z")
plt.show()

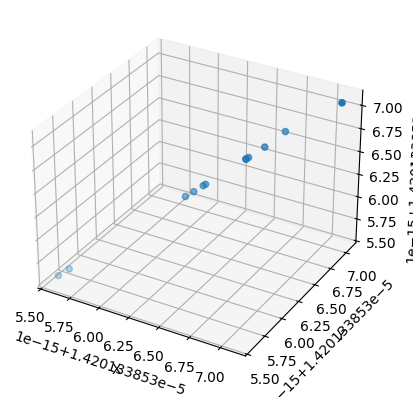

display_solution(ampl)
AMPL solve result: limit code: 400
Objective value: 5.999487782228242e-05
| index0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| index1 | |||||||||||||
| x.val | 1 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 |
| 2 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | |
| 3 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 | 0.000014 |
Provide a starting point to escape the local optimum#
import random
import numpy as np
import pandas as pd
random.seed(42)
start = np.random.rand(N, D)
start_df = pd.DataFrame(start, index=range(1, N + 1), columns=range(1, D + 1))
start_df.transpose()
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 0.309670 | 0.816174 | 0.072489 | 0.788642 | 0.573822 | 0.766945 | 0.127842 | 0.617298 | 0.238040 | 0.819574 | 0.517516 | 0.908738 |
| 2 | 0.247674 | 0.360498 | 0.616121 | 0.555726 | 0.606850 | 0.398702 | 0.438036 | 0.954704 | 0.680294 | 0.025726 | 0.412743 | 0.436167 |
| 3 | 0.001503 | 0.812331 | 0.767304 | 0.032685 | 0.373634 | 0.522982 | 0.186059 | 0.567483 | 0.924209 | 0.857128 | 0.339448 | 0.973921 |
ampl.get_variable("x").set_values(start_df)
ampl.option["mp_options"] = "outlev=1 alg:nlpsolver=1 alg:localsolver=0"
# ampl.snapshot('min_pairw_snapshot_1__with_random_start.run')
ampl.solve()
XPRESS 9.8.0 (46.01.01): tech:outlev = 1
alg:nlpsolver = 1
alg:localsolver = 0
AMPL MP initial flat model has 37 variables (0 integer, 0 binary);
Objectives: 1 linear;
Constraints: 132 quadratic;
AMPL MP final model has 37 variables (0 integer, 0 binary);
Objectives: 1 linear;
Constraints: 132 quadratic;
User solution (AMPL_initial_guess) stored.
Original problem size
linear: 132 rows, 37 columns, 66 linear coefficients
quadratic: 0 in obj, 132 rows, 1188 in rows
Nonlinear presolve
converted 66 quadratic matrices to formulas
simplify removed 792 tokens
creating 66 '+' clusters removed 396 tokens
Presolved problem size
linear: 132 rows, 38 columns, 66 linear coefficients
quadratic: 0 in obj, 66 rows, 594 in rows
nonlinear: 66 coefficients, 2310 tokens
396 mul 0 div 0 sqrt
0 exp 0 log 396 pow
Problem is nonlinear presolved
FICO Xpress v9.8.0, Hyper, solve started 17:29:47, Mar 3, 2026
Control settings used:
INPUTTOL = 0
LOCALSOLVER = 0
NLPSOLVER = 1
Maximum expanded nl-formula size: 35 (row 'R67')
Total tokens: 2310
Quadratic formula size: 594
8 parallel calculation threads
Jacobian: symbolic differentiation
66 base AD formula, 28 average complexity
396 in the Jacobian, 7 average complexity
Initial point objective: 5.999E-05
Absolute / relative validation: .340 / .160
Maximizing problem using Xpress-SLP
Xpress-SLP Augmentation Statistics:
Columns:
36 implicit SLP variables
37 delta vectors
66 penalty error vectors (66 positive, 0 negative)
Rows:
66 nonlinear constraints
37 update rows
1 penalty error rows
Coefficients:
528 non-constant coefficients
It LP NetObj ValObj ErrorSum ErrorCost Validate KKT Unconv Ext Action T
User solution (AMPL_initial_guess) dropped.
1 O .1157 .00 -3.2E-10 37 0 * 0
2 O .1918 .00 -8.8E-08 34 0 * 0
3 O .2497 .00 -1.5E-10 35 0 * 0
4 O .2549 .25 .00 -2.9E-06 9.3E-05 35 0 * 0
5 O .2587 .25 .00 -3.2E-11 .00 35 0 * 0
6 O .2668 .26 .00 -2.0E-06 .00 35 0 * 0
7 O .2695 .26 .00 -8.8E-11 .00 0 0 * 0
8 O .2696 .26 .00 -2.2E-10 .00 0 0 * 0
9 O .2696 .26 .00 -2.1E-10 .00 0 0 * 0
10 O .2696 .26 .00 -2.1E-10 .00 0 0 * 0
11 O .2696 .26 .00 -2.1E-10 .00 .00 0 0 * 0
Returning final converged solution
Xpress-SLP stopped after 11 iterations. 0 unconverged items
Problem solved using Xpress-NLP SLP
Converged on objective function with no unconverged values in active constraints
No unconverged values in active constraints
Problem is nonlinear postsolved
Heap usage: 1274KB (peak 8058KB, 96KB system)
Observed Lipschitz constant: 1.998
Final NLP objective (local optimum) : 2.696777840853675e-01
Max validation error (abs/rel) : .000 / .000
Max primal violation (abs/rel) : 4.093e-09 / 1.902e-09
Observed primal integral : 22.735%
Total / SLP / LP time : .170s / .162s / .158s
Work / work units per second : 0.01 / 0.03
*** Search completed ***
XPRESS 9.8.0 (46.01.01): limit, feasible solution; objective 0.2696777839
13 barrier iterations

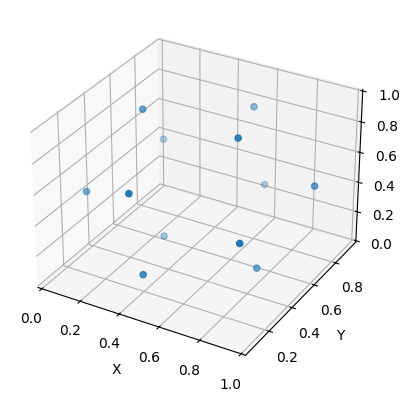

Retrieve the improved local solution#
display_solution(ampl)
AMPL solve result: limit code: 400
Objective value: 0.2696777840853675
| index0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| index1 | |||||||||||||
| x.val | 1 | 0.320639 | 0.951813 | 0.053109 | 0.664496 | 0.858774 | 0.817438 | 0.179595 | 0.351550 | 0.392611 | 0.457261 | 0.580566 | 0.894054 |
| 2 | 0.083250 | 0.159550 | 0.361453 | 0.661393 | 0.914987 | 0.163964 | 0.570608 | 0.943895 | 0.563611 | 0.078762 | 0.482232 | 0.653852 | |
| 3 | 0.294013 | 0.667730 | 0.641445 | 0.021066 | 0.430485 | 0.166131 | 0.183261 | 0.571597 | 0.978415 | 0.804002 | 0.501206 | 0.877969 |
Solve with Xpress Global (reusing previous solution)#
This invokes the global optimizer.
ampl.option["solver"] = "xpress"
ampl.option["mp_options"] = "outlev=1 lim:time=30"
ampl.solve()
XPRESS 9.8.0 (46.01.01): tech:outlev = 1
lim:time = 30
AMPL MP initial flat model has 37 variables (0 integer, 0 binary);
Objectives: 1 linear;
Constraints: 132 quadratic;
AMPL MP final model has 37 variables (0 integer, 0 binary);
Objectives: 1 linear;
Constraints: 132 quadratic;
User solution (AMPL_initial_guess) stored.
Original problem size
linear: 132 rows, 37 columns, 66 linear coefficients
quadratic: 0 in obj, 132 rows, 1188 in rows
Nonlinear presolve
converted 66 quadratic matrices to formulas
simplify removed 792 tokens
creating 66 '+' clusters removed 396 tokens
Presolved problem size
linear: 132 rows, 38 columns, 66 linear coefficients
quadratic: 0 in obj, 66 rows, 594 in rows
nonlinear: 66 coefficients, 2310 tokens
396 mul 0 div 0 sqrt
0 exp 0 log 396 pow
Problem is nonlinear presolved
FICO Xpress v9.8.0, Hyper, solve started 17:29:47, Mar 3, 2026
Control settings used:
INPUTTOL = 0
TIMELIMIT = 30
Maximum expanded nl-formula size: 35 (row 'R67')
Total tokens: 2310
Quadratic formula size: 594
8 parallel calculation threads
Jacobian: symbolic differentiation
66 base AD formula, 28 average complexity
396 in the Jacobian, 7 average complexity
Initial point is within initial feasibility target with objective: .2696
Absolute / relative validation: .000 / .000
User solution (initial point) stored.
------------------- Calling global solver -----------------
FICO Xpress v9.8.0, Hyper, solve started 17:29:47, Mar 3, 2026
Heap usage: 225KB (peak 225KB, 211KB system)
Maximizing Nonconvex-QCP using up to 8 threads and up to 16GB memory
Original problem has:
132 rows 38 cols 66 elements 0 entities
66 qrows 594 qrowelem
Presolved problem has:
132 rows 271 cols 660 elements 0 entities
66 qrows 594 qrowelem
Presolve finished in 0 seconds
Heap usage: 1586KB (peak 1946KB, 211KB system)
Coefficient range original solved
Coefficients [min,max] : [ 1.00e+00, 1.00e+00] / [ 5.00e-01, 1.00e+00]
RHS and bounds [min,max] : [ 1.00e+00, 1.00e+00] / [ 5.00e-01, 1.00e+00]
Objective [min,max] : [ 1.00e+00, 1.00e+00] / [ 2.00e+00, 2.00e+00]
Quadratic [min,max] : [ 2.00e+00, 2.00e+00] / [ 1.00e+00, 1.00e+00]
Autoscaling applied standard scaling
Will try to keep branch and bound tree memory usage below 15.1GB
*** Solution found: .269678 Time: 0.01 Heuristic: U ***
User solution (AMPL_initial_guess) accepted: Feasible solution.
User solution (initial point) rejected: Solution is worse than current cutoff value.
Not using SSE2/AVX
Cores per CPU (CORESPERCPU): 8
Barrier starts after 0 seconds, using up to 8 threads, 8 cores
Matrix ordering - Dense cols.: 271 NZ(L): 9612 Flops: 242202
Its P.inf D.inf U.inf Primal obj. Dual obj. Compl.
0 4.00e+00 6.46e+00 3.75e+00 4.0000000e+00 1.5879871e+03 1.7e+04
1 1.43e-01 1.80e+00 1.34e-01 5.4693066e-01 4.4540987e+01 4.8e+03
2 5.00e-03 6.87e-02 4.69e-03 7.3894232e-01 2.3783853e+00 2.0e+02
3 4.50e-03 6.18e-02 4.22e-03 1.0076088e+00 2.4881146e+00 1.9e+02
4 7.58e-03 5.52e-02 3.80e-03 9.4465829e-04 1.3584647e+00 1.8e+02
5 1.24e-02 2.99e-02 2.01e-03 8.1878734e-01 1.6269962e+00 2.1e+02
6 2.80e-04 6.29e-04 3.76e-05 9.8948890e-01 1.0056135e+00 4.2e+00
7 7.35e-07 7.27e-07 4.00e-08 9.9998896e-01 1.0000061e+00 4.4e-03
8 7.35e-10 7.27e-10 4.00e-11 9.9999999e-01 1.0000000e+00 4.4e-06
Barrier method finished in 0 seconds
Crossover crash basis containing 0 structurals form 234 candidates
Crossover starts
Its Obj Value S Ninf Nneg Sum Inf Time
112 1.000000 P 0 0 .000000 0
0 1.000000 N 0 0 .000000 0
0 1.000000 D 0 0 .000000 0
Crossover successful
Objective function value: 1.000000 time: 0
0 1.000000 P 0 0 .000000 0
0 1.000000 D 3 0 .000000 0
21 1.000000 D 0 0 .000000 0
Optimal solution found
Barrier solved problem
8 barrier and 133 simplex iterations in 0.01 seconds at time 0
Final objective : 1.000000000000000e+00
Max primal violation (abs/rel) : 0.0 / 0.0
Max dual violation (abs/rel) : 0.0 / 0.0
Max complementarity viol. (abs/rel) : 0.0 / 0.0
Starting root cutting & heuristics
Deterministic mode with up to 1 additional thread
Its Type BestSoln BestBound Sols Add Del Gap GInf Time
1 O .269678 1.000000 1 377 726 73.03% 63 0
2 .269678 1.000000 1 296 392 73.03% 57 0
c .276393 1.000000 2 72.36% 0 0
3 .276393 1.000000 2 211 306 72.36% 66 0
4 .276393 1.000000 2 174 231 72.36% 66 1
5 .276393 1.000000 2 162 178 72.36% 66 1
6 .276393 1.000000 2 252 163 72.36% 66 1
7 .276393 1.000000 2 202 241 72.36% 66 1
8 .276393 1.000000 2 236 192 72.36% 65 1
9 .276393 1.000000 2 251 236 72.36% 54 1
10 .276393 1.000000 2 277 255 72.36% 61 2
11 .276393 1.000000 2 179 283 72.36% 63 2
12 .276393 1.000000 2 180 187 72.36% 61 2
13 .276393 1.000000 2 333 187 72.36% 54 2
14 .276393 1.000000 2 186 329 72.36% 55 2
15 .276393 1.000000 2 216 192 72.36% 52 2
16 .276393 1.000000 2 225 205 72.36% 55 3
17 .276393 1.000000 2 267 230 72.36% 55 3
18 .276393 1.000000 2 273 266 72.36% 48 3
19 .276393 1.000000 2 304 282 72.36% 48 3
20 .276393 1.000000 2 266 558 72.36% 48 3
Cuts in the matrix : 68
Cut elements in the matrix : 396
Starting tree search.
Deterministic mode with up to 8 running threads and up to 16 tasks.
Heap usage: 10MB (peak 11MB, 399KB system)
Node BestSoln BestBound Sols Active Depth Gap GInf Time
1 .276393 1.000000 2 2 1 72.36% 23 4
2 .276393 1.000000 2 2 2 72.36% 40 4
3 .276393 1.000000 2 2 2 72.36% 60 4
4 .276393 1.000000 2 2 3 72.36% 48 4
5 .276393 1.000000 2 2 4 72.36% 54 4
6 .276393 1.000000 2 5 3 72.36% 60 4
7 .276393 1.000000 2 5 5 72.36% 43 4
8 .276393 1.000000 2 5 5 72.36% 52 4
9 .276393 1.000000 2 5 4 72.36% 52 4
10 .276393 1.000000 2 5 4 72.36% 38 4
22 .276393 1.000000 2 20 8 72.36% 50 4
32 .276393 1.000000 2 20 11 72.36% 31 4
42 .276393 1.000000 2 20 14 72.36% 37 4
54 .276393 1.000000 2 20 18 72.36% 42 4
66 .276393 1.000000 2 20 21 72.36% 51 4
77 .276393 1.000000 2 20 23 72.36% 56 4
87 .276393 1.000000 2 20 25 72.36% 57 4
98 .276393 1.000000 2 20 27 72.36% 38 4
108 .276393 1.000000 2 20 28 72.36% 45 4
Elapsed time (sec): 5, estimated tree completion: 0.00000
Heap usage: 68MB (peak 68MB, 730KB system)
B&B tree size: 3.4MB total
Node BestSoln BestBound Sols Active Depth Gap GInf Time
212 .276393 1.000000 2 20 49 72.36% 19 5
313 .276393 1.000000 2 82 26 72.36% 53 5
415 .276393 1.000000 2 144 86 72.36% 13 6
515 .276393 1.000000 2 296 29 72.36% 55 6
616 .276393 1.000000 2 296 33 72.36% 49 6
718 .276393 1.000000 2 296 37 72.36% 50 7
819 .276393 1.000000 2 296 37 72.36% 48 7
919 .276393 1.000000 2 296 64 72.36% 16 7
1021 .276393 1.000000 2 296 37 72.36% 38 8
1121 .276393 1.000000 2 296 63 72.36% 36 8
1221 .276393 1.000000 2 296 62 72.36% 26 8
1322 .276393 1.000000 2 296 66 72.36% 22 9
1422 .276393 1.000000 2 296 80 72.36% 17 9
1523 .276393 1.000000 2 296 43 72.36% 49 9
1625 .276393 1.000000 2 296 35 72.36% 37 10
1728 .276393 1.000000 2 296 67 72.36% 24 10
1829 .276393 1.000000 2 296 30 72.36% 53 10
1931 .276393 1.000000 2 296 51 72.36% 25 11
2032 .276393 1.000000 2 296 45 72.36% 28 11
2132 .276393 1.000000 2 296 67 72.36% 22 11
Elapsed time (sec): 12, estimated tree completion: 0.00000
Heap usage: 165MB (peak 165MB, 1153KB system)
B&B tree size: 39MB total
Node BestSoln BestBound Sols Active Depth Gap GInf Time
2232 .276393 1.000000 2 296 62 72.36% 33 12
2332 .276393 1.000000 2 553 22 72.36% 53 12
2433 .276393 1.000000 2 553 34 72.36% 39 12
2535 .276393 1.000000 2 553 65 72.36% 22 13
2637 .276393 1.000000 2 553 82 72.36% 29 13
2738 .276393 1.000000 2 553 36 72.36% 51 14
2840 .276393 1.000000 2 553 32 72.36% 49 14
2940 .276393 1.000000 2 553 48 72.36% 30 14
3042 .276393 1.000000 2 553 37 72.36% 51 15
3144 .276393 1.000000 2 553 44 72.36% 22 15
3246 .276393 1.000000 2 864 38 72.36% 32 15
3348 .276393 1.000000 2 864 37 72.36% 63 16
3448 .276393 1.000000 2 864 38 72.36% 43 16
3548 .276393 1.000000 2 864 50 72.36% 34 16
3650 .276393 1.000000 2 864 52 72.36% 32 17
3750 .276393 1.000000 2 864 45 72.36% 51 17
3851 .276393 1.000000 2 864 44 72.36% 42 17
3951 .276393 1.000000 2 864 33 72.36% 34 18
4053 .276393 1.000000 2 864 25 72.36% 37 18
4155 .276393 1.000000 2 864 47 72.36% 39 18
Elapsed time (sec): 19, estimated tree completion: 0.00000
Heap usage: 278MB (peak 278MB, 1742KB system)
B&B tree size: 75MB total
Node BestSoln BestBound Sols Active Depth Gap GInf Time
4257 .276393 1.000000 2 864 39 72.36% 42 19
4357 .276393 1.000000 2 864 34 72.36% 48 19
4457 .276393 1.000000 2 864 46 72.36% 28 19
4558 .276393 1.000000 2 864 35 72.36% 37 20
4659 .276393 1.000000 2 864 35 72.36% 44 20
4759 .276393 1.000000 2 864 37 72.36% 42 20
4859 .276393 1.000000 2 864 33 72.36% 45 21
4959 .276393 1.000000 2 864 35 72.36% 54 21
5061 .276393 1.000000 2 864 61 72.36% 28 21
5163 .276393 1.000000 2 864 64 72.36% 13 22
5264 .276393 1.000000 2 864 51 72.36% 39 22
5365 .276393 1.000000 2 864 46 72.36% 48 22
5466 .276393 1.000000 2 864 85 72.36% 15 23
5566 .276393 1.000000 2 864 78 72.36% 23 23
5668 .276393 1.000000 2 864 34 72.36% 30 23
5769 .276393 1.000000 2 864 36 72.36% 32 24
5870 .276393 1.000000 2 864 49 72.36% 38 24
5972 .276393 1.000000 2 864 80 72.36% 11 24
6072 .276393 1.000000 2 864 30 72.36% 58 25
6174 .276393 1.000000 2 864 47 72.36% 21 25
Elapsed time (sec): 25, estimated tree completion: 0.00000
Heap usage: 311MB (peak 311MB, 1742KB system)
B&B tree size: 112MB total
Node BestSoln BestBound Sols Active Depth Gap GInf Time
6275 .276393 1.000000 2 864 37 72.36% 35 25
6375 .276393 1.000000 2 864 40 72.36% 46 26
6475 .276393 1.000000 2 864 44 72.36% 25 26
6577 .276393 1.000000 2 864 39 72.36% 45 26
6679 .276393 1.000000 2 864 57 72.36% 20 27
6779 .276393 1.000000 2 864 67 72.36% 19 27
6882 .276393 1.000000 2 864 20 72.36% 40 27
6982 .276393 1.000000 2 864 44 72.36% 45 28
7084 .276393 1.000000 2 864 56 72.36% 26 28
7184 .276393 1.000000 2 864 45 72.36% 47 28
7287 .276393 1.000000 2 864 53 72.36% 23 29
7389 .276393 1.000000 2 864 40 72.36% 40 29
7490 .276393 1.000000 2 864 41 72.36% 39 29
STOPPING - MAXTIME limit reached (TIMELIMIT=30.00 time=30.00).
STOPPING - MAXTIME limit reached (TIMELIMIT=30.00 time=30.08).
*** Search unfinished *** Time: 30.08 Nodes: 7541
Heap usage: 36MB (peak 311MB, 444KB system)
Final MINLP objective (feasible sol.) : 2.763932056861722e-01
Final MINLP bound : 1.000000000000000e+00
Max validation error (abs/rel) : .000 / .000
Max primal violation (abs/rel) : 0.0 / 0.0
Max integer violation (abs ) : 0.0
Number of solutions found / nodes : 2 / 7541
Observed primal integral : .090%
Solution time / primaldual integral : 30.08s/ 72.385065%
Work / work units per second : 21.70 / 0.72
*** Time limit reached ***
XPRESS 9.8.0 (46.01.01): limit, feasible solution; objective 0.2763932057
7541 branching nodes
Retrieve the solution from Xpress Global#
display_solution(ampl)
AMPL solve result: limit code: 400
Objective value: 0.2763932056861722
| index0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| index1 | |||||||||||||

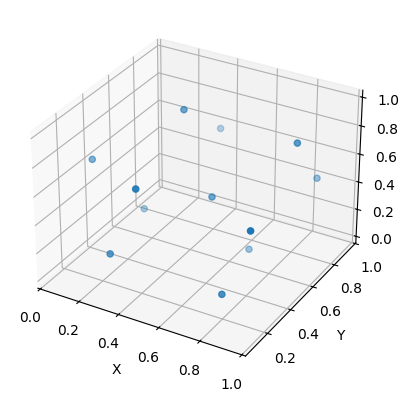

| x.val | 1 | 0.532567 | 0.721104 | 0.114947 | 0.885053 | 0.278896 | 0.045381 | 0.579993 | 0.797842 | 0.467433 | 0.420007 | 0.954619 | 0.202158 |
| 2 | 0.908340 | 0.443782 | 0.818349 | 0.181651 | 0.556218 | 0.298173 | 0.933322 | 0.484204 | 0.091660 | 0.066678 | 0.701827 | 0.515796 | |
| 3 | 0.786701 | 0.944919 | 0.480289 | 0.519711 | 0.055081 | 0.449133 | 0.263710 | 0.098701 | 0.213299 | 0.736290 | 0.550867 | 0.901299 |
Conclusion#
We observed that local optimization (e.g., Xpress SLP) can quickly provide good solutions to nonlinear problems, but may require “reasonable” starting points. Xpress Global Optimizer can improve the result, taking longer time.
