Paintshop Color Change Scheduling with FICO Xpress#
Description: A scheduling problem demonstrating high-level modeling and manual solver tuning in FICO Xpress
Tags: AMPLPY, MP, scheduling, color change scheduling, tuning, xpress
Notebook author: Gleb Belov <gleb@ampl.com>
Reference:
F. Winter and N. Musliu (2022). A large neighborhood search approach for the paint shop scheduling problem. J Sched 25 pp 453-475.
AMPL Xpress documentation. https://dev.ampl.com/solvers/xpress/index.html.
AMPL MP Library: modeling guide. https://mp.ampl.com/.
# Install dependencies
%pip install -q amplpy pandas matplotlib
# Google Colab & Kaggle integration
from amplpy import AMPL, ampl_notebook
ampl = ampl_notebook(
modules=["xpress"], # modules to install
license_uuid="default", # license to use
) # instantiate AMPL object and register magics
Problem description#
Paintshop color change scheduling problem (PCCSP) is a subproblem in the paintshop scheduling problem (PSSP). While PSSP optimizes a complete schedule, PCCSP is restricted to decisions concerning coloring operations.
Given a predefined sequence of skid types passing through coloring equipment, PCCSP assigns car parts to the skids so that to minimize color change costs. While in practice the skid type sequence comes from a larger problem, we generate that and other parameters randomly.
aimtecglobal.com |
We set up the model and manually adjust FICO Xpress parameters.
Model highlights#
Pre-defined sequence of skid types
Each skid type can hold one of a subset of pre-defined combinations (patterns) of car parts.
For example, skid type 926 can hold one of the patterns 20, 35, …
Each pattern has
minimal and extra demands (how many times it should be scheduled);
Several color specifications:
Two “simple” colors (can be quickly changed between skids)
“Maximal” color, if any (change requires 30 skids’ waiting time, however there are three Max coloring machines)
Minimize costs for over- and underproduction, as well as color change costs of each specification.
AMPL model#
Use %%writefile to save AMPL model, or %%ampl_eval to evaluate AMPL statements
%%writefile pccsp.mod
set SKID_TYPES; # Parameter sets
set PATTERNS;
set COLOR_SIMPLE_CATEGORIES;
set COLORS_SIMPLE {COLOR_SIMPLE_CATEGORIES};
set COLORS_MAX;
set COLOR_MAX_MACHINES default 1..3;
param n_slots; # Allocation parameters
set SLOTS := 1..n_slots;
param slot_skid_type {SLOTS} in SKID_TYPES;
set SKID_TYPE_PATTERNS {SKID_TYPES} within PATTERNS;
param pattern_demand_minimum {PATTERNS};
param pattern_demand_extra {PATTERNS};
# Color parameters
param color_spec_simple {PATTERNS, cc in COLOR_SIMPLE_CATEGORIES}
in COLORS_SIMPLE[cc];
param color_spec_MAX {PATTERNS} in COLORS_MAX union {0}; # 0 means not used
param wait_change_MAX integer default 30; # For each MAX machine
# Costs
param pattern_missing_cost {PATTERNS};
param pattern_overuse_cost {PATTERNS};
param color_simple_change_cost {COLOR_SIMPLE_CATEGORIES};
param color_MAX_change_cost;
# Primary variables
var slot_pattern {SLOTS} in PATTERNS union {0}; # 0 means slot empty
var slot_color_spec_MAX {SLOTS, COLOR_MAX_MACHINES} in COLORS_MAX;
var slot_color_MAX_machine_available {SLOTS, COLOR_MAX_MACHINES} binary;
# Secondary variables
var pattern_use {p in PATTERNS} >= pattern_demand_minimum[p];
var pattern_missing {p in PATTERNS} >= 0;
var pattern_overuse {p in PATTERNS} >= 0;
var slot_color_spec {SLOTS, cc in COLOR_SIMPLE_CATEGORIES} in COLORS_SIMPLE[cc];
var slot_color_change {1..n_slots-1, COLOR_SIMPLE_CATEGORIES} binary;
var slot_color_MAX_change {1..n_slots-1, COLOR_MAX_MACHINES} binary;
# Constraints
s.t. PatternUse {p in PATTERNS}:
pattern_use[p] ==
count {s in SLOTS} (p == slot_pattern[s]);
s.t. PatternUseBalance {p in PATTERNS}:
pattern_demand_minimum[p] + pattern_demand_extra[p] +
pattern_overuse[p] ==
pattern_use[p] + pattern_missing[p];
s.t. PatternChoice {s in SLOTS}: # Restrict pattern choice in the slot
exists {p in {0} union SKID_TYPE_PATTERNS[slot_skid_type[s]]}
(p == slot_pattern[s]);
s.t. ColorSimpleSpec {s in SLOTS,
p in SKID_TYPE_PATTERNS[slot_skid_type[s]],
cc in COLOR_SIMPLE_CATEGORIES}:
(p == slot_pattern[s]) ==> # Pattern p selected ==>
(slot_color_spec[s, cc] == color_spec_simple[p, cc]); # Assign simple colors
s.t. ColorSimpleChanges {s in 1..n_slots-1,
cc in COLOR_SIMPLE_CATEGORIES}:
(slot_color_spec[s, cc] != slot_color_spec[s+1, cc]) ==> slot_color_change[s, cc];
s.t. ColorMAXSpec {s in SLOTS,
p in SKID_TYPE_PATTERNS[slot_skid_type[s]]:
color_spec_MAX[p] in COLORS_MAX}: # If p requires some color MAX:
(p == slot_pattern[s]) ==> # Pattern allocated ==>
(exists {cm in COLOR_MAX_MACHINES} # some MAX machine must do it
(slot_color_spec_MAX[s, cm] == color_spec_MAX[p]
&& slot_color_MAX_machine_available[s, cm]));
s.t. ColorMAXChanges {s in 1..n_slots-1,
cm in COLOR_MAX_MACHINES}:# Changing MAX color on machine cm ==>
(slot_color_spec_MAX[s, cm] != slot_color_spec_MAX[s+1, cm]) ==>
((forall {s1 in s+1..min(n_slots, s+wait_change_MAX)}
! slot_color_MAX_machine_available[s1, cm]) # Block cm for 30 slots
&& slot_color_MAX_change[s, cm]); # and bump change flag
# Objective
minimize TotalCosts:
sum {p in PATTERNS} (pattern_missing_cost[p] * pattern_missing[p]
+ pattern_overuse_cost[p] * pattern_overuse[p])
+ sum {s in 1.. n_slots-1}
(sum {cc in COLOR_SIMPLE_CATEGORIES}
color_simple_change_cost[cc] * slot_color_change[s, cc]
+ sum {cm in COLOR_MAX_MACHINES}
color_MAX_change_cost * slot_color_MAX_change[s, cm]);
Overwriting pccsp.mod
Instance generation code#
import random
import math
from dataclasses import dataclass, field
from typing import List, Set, Dict
class InstGenParams:
def __init__(self):
self.nSkidTypes = 4
self.nPatterns = 5
self.nSlots = 50
self.nSkidTypesForPatternMeanDev = [1, 2] # Dev is variance
self.dSkidTypeNWindowsMeanDev = [3, 10]
self.demandMinMeanDev = [1, 4]
self.demandExtraMeanDev = [10, 40]
self.nColorsSimple = [4, 5] # N colors for each simple category
self.nColorsMax = 7
self.pUsingColorMax = 0.7 # Probability for a pattern
self.nColorMAXMachines = 3
self.nChangeMAXWait = 30
self.minCost = 1e-3 # For a cost
self.patternMissingCostMeanDev = [10, 5]
self.patternOveruseCostMeanDev = [2, 1]
self.colorSimpleChangeCost = [1, 1] # For each category
self.colorMAXChangeCost = [10]
# -------------------- Data Model --------------------
@dataclass
class PatternData:
id: int
min_demand: int = 0
extra_demand: int = 0
allowable_skid_types: Set[int] = field(default_factory=set)
total_assigned: int = 0
@dataclass
class SkidTypeData:
id: int
allowable_patterns: Set[int] = field(default_factory=set)
total_usage: int = 0
n_subsequences: int = 0
n_subseq_merged: int = 0 # Some can be consecutive
subsequences: List[int] = field(default_factory=list) # sizes of each block
subseq_merged: List[int] = field(default_factory=list) # sizes of each block
@dataclass
class InstanceResult:
skid_types: Dict[int, SkidTypeData]
patterns: Dict[int, PatternData]
skid_type_usages: List[int]
sum_min_demands: int
pattern_min_demands: List[int]
pattern_extra_demands: List[int]
overall_sequence: List[int]
color_spec_simple: List[int]
color_spec_MAX: List[int]
nColorMAXMachines: int
nChangeMAXWait: int
patternMissingCost: List[int]
patternOveruseCost: List[int]
colorSimpleChangeCost: List[int]
colorMAXChangeCost: int
# -------------------- Generator --------------------
class InstanceGenerator:
def __init__(self, params: InstGenParams, seed: int = 42):
self.params = params
if seed is not None:
random.seed(seed)
self.patterns = {i: PatternData(i) for i in range(params.nPatterns)}
self.skid_types = {i: SkidTypeData(i) for i in range(params.nSkidTypes)}
self.total_used_skids = 0
# --------- Utility Draw Methods ---------
@staticmethod
def _draw_nonnegative_int(mean_dev):
"""Gaussian draw, rounded to integer, truncated at 0."""
mean, dev = mean_dev
return max(0, int(round(random.gauss(mean, math.sqrt(dev)))))
@staticmethod
def _draw_positive_int(mean_dev):
"""Gaussian draw truncated at 1."""
return max(1, InstanceGenerator._draw_nonnegative_int(mean_dev))
# --------- Step 1 ---------
def generate_pattern_demands(self):
"""
1. For each pattern, generate minimal and extra demand.
Negative draws are replaced by 0.
"""
for p in self.patterns.values():
p.min_demand = self._draw_nonnegative_int(self.params.demandMinMeanDev)
p.extra_demand = self._draw_nonnegative_int(self.params.demandExtraMeanDev)
# --------- Step 2 ---------
def generate_allowable_sets(self):
"""
2. For each pattern, generate allowable skid types.
Cardinality drawn from mean/deviation.
Also build inverse mapping: skid_type -> allowable patterns.
"""
for p in self.patterns.values():
k = self._draw_nonnegative_int(self.params.nSkidTypesForPatternMeanDev)
# At least 1, at most total skid types
k = min(max(1, k), self.params.nSkidTypes)
allowable = set(random.sample(range(self.params.nSkidTypes), k))
p.allowable_skid_types = allowable
for s in allowable:
self.skid_types[s].allowable_patterns.add(p.id)
# --------- Step 3 & 4 ---------
def assign_min_demands(self):
"""
3. Assign each pattern to min_demand skids from its allowable set.
4. If total usage exceeds nSlots → error.
"""
for p in self.patterns.values():
for _ in range(p.min_demand):
skid = random.choice(list(p.allowable_skid_types))
self._assign(p.id, skid)
if self.total_used_skids > self.params.nSlots:
raise ValueError("Minimal demands exceed total number of slots")
# --------- Step 5 & 6 ---------
def fill_remaining_slots(self):
"""
5. total_used_skids already maintained.
6. While below nSlots, repeatedly assign:
- pattern chosen with probability proportional to extra_demand + 1
- skid chosen uniformly from pattern's allowable set
"""
while self.total_used_skids < self.params.nSlots:
weights = [self.patterns[i].extra_demand + 1 for i in self.patterns]
pattern_id = random.choices(
population=list(self.patterns.keys()), weights=weights, k=1
)[0]
skid = random.choice(list(self.patterns[pattern_id].allowable_skid_types))
self._assign(pattern_id, skid)
def _assign(self, pattern_id: int, skid_id: int):
"""Internal consistent assignment update."""
self.patterns[pattern_id].total_assigned += 1
self.skid_types[skid_id].total_usage += 1
self.total_used_skids += 1
# --------- Step 7 & 8 ---------

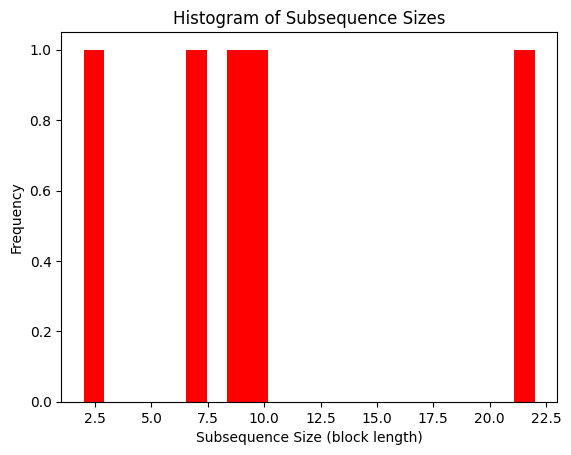

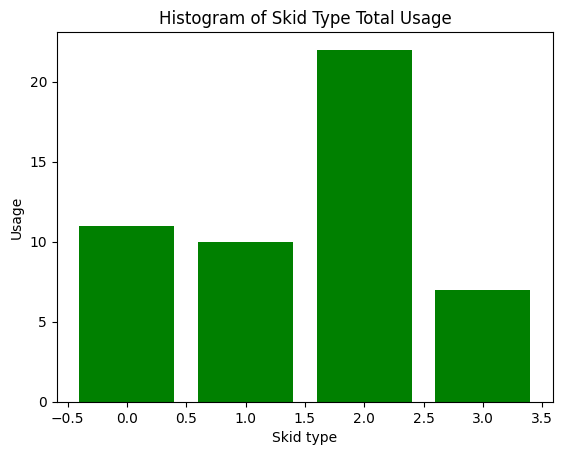

def generate_subsequences(self):
"""
7. For each used skid type:
- draw number of subsequences (>=1)
- may exceed number of allowable patterns
- cap only by total usage
8. Split total usage into that many positive parts.
"""
for s in self.skid_types.values():
if s.total_usage == 0:
continue
# subsequence count may exceed allowable patterns
n = self._draw_positive_int(self.params.dSkidTypeNWindowsMeanDev)
# Cannot exceed total usage (must allow positive split)
n = min(n, s.total_usage)
s.n_subsequences = n
# Random composition of total_usage into n positive integers
if n == 1:
s.subsequences = [s.total_usage]
continue
cuts = sorted(random.sample(range(1, s.total_usage), n - 1))
parts = []
prev = 0
for c in cuts + [s.total_usage]:
parts.append(c - prev)
prev = c
s.subsequences = parts
# --------- Step 9 ---------
def build_overall_sequence(self) -> List[int]:
"""
9. Build sequence by shuffling whole subsequences (blocks),
not individual skid units.
"""
blocks = []
for s in self.skid_types.values():
for size in s.subsequences:
# Each block is a contiguous identical skid type
blocks.append([s.id] * size)
# Shuffle blocks (not flattened list)
random.shuffle(blocks)
# Flatten blocks preserving block integrity
sequence = [x for block in blocks for x in block]
# Safety check
if len(sequence) != self.params.nSlots:
raise RuntimeError("Final sequence length mismatch")
return sequence
# --------- Step 10 ---------
def generate_colors(self):
self.color_spec_simple = [[] for cc in self.params.nColorsSimple]
self.color_spec_MAX = []
for s in self.patterns.values():
if random.random() < self.params.pUsingColorMax: # All int's to add +1
self.color_spec_MAX.append(
random.randint(0, self.params.nColorsMax - 1)
)
else:
self.color_spec_MAX.append(-1) # No using color MAX
for cc in range(len(self.params.nColorsSimple)):
self.color_spec_simple[cc].append(
random.randint(0, self.params.nColorsSimple[cc] - 1)
)
# --------- Step 11 ---------
def generate_costs(self):
self.pattern_missing_cost = []
self.pattern_overuse_cost = []
mm, md = self.params.patternMissingCostMeanDev
om, od = self.params.patternOveruseCostMeanDev
for s in self.patterns.values():
self.pattern_missing_cost.append(
max(self.params.minCost, random.gauss(mm, math.sqrt(md)))
)
self.pattern_overuse_cost.append(
max(self.params.minCost, random.gauss(om, math.sqrt(od)))
)
# --------- Step 12 ---------
def generate(self) -> InstanceResult:
"""
Full generation pipeline following steps 1–10.
"""
self.generate_pattern_demands()
self.generate_allowable_sets()
self.assign_min_demands()
self.fill_remaining_slots()
self.generate_subsequences()
sequence = self.build_overall_sequence()
self.generate_colors()
self.generate_costs()
return InstanceResult(
skid_types=self.skid_types,
patterns=self.patterns,
skid_type_usages=[
self.skid_types[i].total_usage for i in range(self.params.nSkidTypes)
],
sum_min_demands=sum(p.min_demand for p in self.patterns.values()),
pattern_min_demands=[p.min_demand for p in self.patterns.values()],
pattern_extra_demands=[p.extra_demand for p in self.patterns.values()],
overall_sequence=sequence,
color_spec_simple=self.color_spec_simple,
color_spec_MAX=self.color_spec_MAX,
nColorMAXMachines=self.params.nColorMAXMachines,
nChangeMAXWait=self.params.nChangeMAXWait,
patternMissingCost=self.pattern_missing_cost,
patternOveruseCost=self.pattern_overuse_cost,
colorSimpleChangeCost=self.params.colorSimpleChangeCost,
colorMAXChangeCost=self.params.colorMAXChangeCost,
)
Pretty-printing and visualization code#
import pandas as pd
from typing import Optional
def display_instance(
result: InstanceResult,
params: InstGenParams,
max_sequence_display: int = 100,
show_empty_skids: bool = False,
) -> None:
"""
Pretty-print instance data for Jupyter Notebook usage.
Parameters
----------
result : InstanceResult
params : InstGenParams
max_sequence_display : int
Maximum number of sequence entries to display.
show_empty_skids : bool
If False, hide skid types with zero usage.
"""
print("========== INSTANCE SUMMARY ==========")
print(f"Patterns : {params.nPatterns}")
print(f"Skid types : {params.nSkidTypes}")
print(f"Slots : {params.nSlots}")
print(f"Sum minimal demand: {result.sum_min_demands}")
print(f"Total usage : {sum(result.skid_type_usages)}")
print()
# ---------------- Patterns ----------------
pattern_rows = []
for p in result.patterns.values():
pattern_rows.append(
{
"Pattern": p.id,
"MinDemand": p.min_demand,
"ExtraDemand": p.extra_demand,
"TotalAssigned": p.total_assigned,
"AllowableSkids": sorted(list(p.allowable_skid_types)),
}
)
df_patterns = pd.DataFrame(pattern_rows)
print("---------- PATTERNS ----------")
display(df_patterns.sort_values("Pattern").reset_index(drop=True))
print()
# ---------------- Skid Types ----------------
skid_rows = []
for s in result.skid_types.values():
if not show_empty_skids and s.total_usage == 0:
continue
skid_rows.append(
{
"SkidType": s.id,
"TotalUsage": s.total_usage,
"N_Subseq": s.n_subsequences,
"SubseqSizes": s.subsequences,
"AllowablePatterns": sorted(list(s.allowable_patterns)),
}
)
df_skids = pd.DataFrame(skid_rows)
print("---------- SKID TYPES (showing non-merged subsequence sizes) ----------")
if not df_skids.empty:
display(df_skids.sort_values("SkidType").reset_index(drop=True))
else:
print("(No used skid types)")
print()
# ---------------- Overall Sequence ----------------
print("---------- OVERALL SEQUENCE (some subsequences can be merged) ----------")
print(f"Length: {len(result.overall_sequence)}")
s = 0
i_subseq = 0
while s < len(result.overall_sequence):
l_subseq = 1
s_next = s + 1
while (
s_next < len(result.overall_sequence)
and result.overall_sequence[s_next] == result.overall_sequence[s]
):
l_subseq += 1
s_next += 1
print(
"{}: Skid type x multiplicity: {} x {}".format(
i_subseq, result.overall_sequence[s], l_subseq
)
)
result.skid_types[result.overall_sequence[s]].n_subseq_merged += 1
result.skid_types[result.overall_sequence[s]].subseq_merged.append(l_subseq)
s = s_next
i_subseq += 1
print("======================================")
import matplotlib.pyplot as plt
def visualize_instance_statistics(
result: InstanceResult, show_empty_skids: bool = False
) -> None:
"""
Visualize key structural statistics of the generated instance.
Produces three separate histograms:
1) Skid type total usage
2) Subsequence sizes (block lengths)
3) Number of subsequences per skid type
Parameters
----------
result : InstanceResult
show_empty_skids : bool
If False, exclude skid types with zero usage.
"""
# -------------------------
# Collect data
# -------------------------
skid_types_with_usage = []
skid_types_non0 = []
usages = []
n_subseq = []
subseq_sizes = []
for s in result.skid_types.values():
if not show_empty_skids and s.total_usage == 0:
continue
skid_types_with_usage.append(s.id)
usages.append(s.total_usage)
if s.total_usage > 0:
skid_types_non0.append(s.id)
n_subseq.append(s.n_subseq_merged)
subseq_sizes.extend(s.subseq_merged)
# -------------------------
# 1. Histogram: Skid Usage
# -------------------------
print("Create usage histogram: usages", usages)
plt.figure()
plt.bar(skid_types_with_usage, usages, color="green")
plt.title("Histogram of Skid Type Total Usage")
plt.xlabel("Skid type")
plt.ylabel("Usage")
# plt.set_xticks(skid_types_with_usage)
plt.show()
# -------------------------
# 2. Histogram: Subsequence Sizes
# -------------------------
if subseq_sizes:
plt.figure()
plt.hist(subseq_sizes, max(subseq_sizes), color="red")
plt.title("Histogram of Subsequence Sizes")
plt.xlabel("Subsequence Size (block length)")
plt.ylabel("Frequency")
plt.show()
else:
print("No subsequences to display.")
# -------------------------
# 3. Histogram: Number of Subsequences per Skid
# -------------------------
if n_subseq:
plt.figure()
plt.bar(skid_types_non0, n_subseq)
plt.title("Histogram of Number of Subsequences per Skid Type")
plt.ylabel("Number of Subsequences")
plt.xlabel("Skid type")
plt.show()
else:
print("No subsequence-count data to display.")
Generate & visualize data#
params = InstGenParams()
generator = InstanceGenerator(params)
instance = generator.generate()
display_instance(instance, params)
========== INSTANCE SUMMARY ==========
Patterns : 5
Skid types : 4
Slots : 50
Sum minimal demand: 6
Total usage : 50
---------- PATTERNS ----------
| Pattern | MinDemand | ExtraDemand | TotalAssigned | AllowableSkids | |
|---|---|---|---|---|---|
| 0 | 0 | 1 | 9 | 9 | [0] |
| 1 | 1 | 1 | 14 | 12 | [1, 2, 3] |
| 2 | 2 | 1 | 1 | 2 | [0] |
| 3 | 3 | 2 | 8 | 15 | [1, 2, 3] |
| 4 | 4 | 1 | 11 | 12 | [2] |
---------- SKID TYPES (showing non-merged subsequence sizes) ----------
| SkidType | TotalUsage | N_Subseq | SubseqSizes | AllowablePatterns | |
|---|---|---|---|---|---|
| 0 | 0 | 11 | 5 | [2, 1, 4, 2, 2] | [0, 2] |
| 1 | 1 | 10 | 1 | [10] | [1, 3] |
| 2 | 2 | 22 | 1 | [22] | [1, 3, 4] |
| 3 | 3 | 7 | 1 | [7] | [1, 3] |
---------- OVERALL SEQUENCE (some subsequences can be merged) ----------
Length: 50
0: Skid type x multiplicity: 0 x 2
1: Skid type x multiplicity: 3 x 7
2: Skid type x multiplicity: 0 x 9
3: Skid type x multiplicity: 2 x 22
4: Skid type x multiplicity: 1 x 10
======================================
visualize_instance_statistics(instance, True)
Create usage histogram: usages [11, 10, 22, 7]
Load data directly from Python data structures using amplpy#
import numpy as np
import pandas as pd
def load_instance_into_ampl_vectorized_1based(
ampl: AMPL, result: InstanceResult, params: InstGenParams
) -> None:
"""
Vectorized AMPL loader with 0→1 index shifting
for skid types and patterns.
"""
# ------------------------------------------------
# 1. Shifted SKID_TYPES and PATTERNS
# ------------------------------------------------
skid_ids = np.array(list(result.skid_types.keys()), dtype=int) + 1
pattern_ids = np.array(list(result.patterns.keys()), dtype=int) + 1
ampl.set["SKID_TYPES"] = skid_ids
ampl.set["PATTERNS"] = pattern_ids
# ------------------------------------------------
# 2. Scalar parameter
# ------------------------------------------------
ampl.param["n_slots"] = params.nSlots
# ------------------------------------------------
# 3. Slot → Skid mapping (shift skid values)
# ------------------------------------------------
slot_df = pd.DataFrame(
{
"SLOTS": np.arange(1, params.nSlots + 1),
"slot_skid_type": np.array(result.overall_sequence, dtype=int) + 1,
}
).set_index("SLOTS")
ampl.setData(slot_df)
# ------------------------------------------------
# 4. SKID_TYPE_PATTERNS relation (shift both sides)
# ------------------------------------------------
rows = []
for skid_id, skid in result.skid_types.items():
skid_shifted = skid_id + 1
patterns_shifted = np.array(list(skid.allowable_patterns), dtype=int) + 1
ampl.set["SKID_TYPE_PATTERNS"][skid_shifted] = patterns_shifted
# ------------------------------------------------
# 5. Pattern demand parameters (shift index)
# ------------------------------------------------
demand_df = pd.DataFrame(
{
"PATTERNS": pattern_ids,
"pattern_demand_minimum": [p.min_demand for p in result.patterns.values()],
"pattern_demand_extra": [p.extra_demand for p in result.patterns.values()],
}
).set_index("PATTERNS")
ampl.setData(demand_df)
# ------------------------------------------------
# 6. Colors
# ------------------------------------------------
ampl.set["COLOR_SIMPLE_CATEGORIES"] = range(1, len(result.color_spec_simple) + 1)
ampl.set["COLORS_MAX"] = range(1, params.nColorsMax + 1)
ampl.set["COLOR_MAX_MACHINES"] = range(1, result.nColorMAXMachines + 1)
for cc in range(len(result.color_spec_simple)):
ampl.set["COLORS_SIMPLE"][cc + 1] = range(1, params.nColorsSimple[cc] + 1)
for p in range(len(result.patternMissingCost)): # Rather slow
ampl.param["color_spec_simple"][p + 1, cc + 1] = (
result.color_spec_simple[cc][p] + 1
)
ampl.param["color_spec_MAX"] = np.array(list(result.color_spec_MAX), dtype=int) + 1
ampl.param["wait_change_MAX"] = result.nChangeMAXWait
# ------------------------------------------------
# 6. Colors
# ------------------------------------------------
ampl.param["pattern_missing_cost"] = np.array(
list(result.patternMissingCost), dtype=float
)
ampl.param["pattern_overuse_cost"] = np.array(
list(result.patternOveruseCost), dtype=float
)
ampl.param["color_simple_change_cost"] = np.array(
list(result.colorSimpleChangeCost), dtype=float
)
ampl.param["color_MAX_change_cost"] = result.colorMAXChangeCost
ampl = AMPL()
ampl.read("pccsp.mod")
load_instance_into_ampl_vectorized_1based(ampl, instance, params)
Solve with FICO Xpress#
First, let us solve the instance with default settings.
ampl.option["solver"] = "xpress"
ampl.option["mp_options"] = "outlev=1 " + "lim:time=60"
ampl.snapshot(
"pccsp_snapshot.run"
) # Debug feature: save AMPL state, including the instance
ampl.solve()
XPRESS 9.8.0 (46.01.01): tech:outlev = 1
lim:time = 60
AMPL MP initial flat model has 710 variables (300 integer, 395 binary);
Objectives: 1 linear;
Constraints: 10 linear;
Algebraic expressions: 5 count;
Logical expressions: 917 conditional (in)equalitie(s); 297 and; 269 not; 589 or;
AMPL MP final model has 2981 variables (894 integer, 2072 binary);
Objectives: 1 linear;
Constraints: 379 linear;
Logical expressions: 297 and; 617 indeq; 589 or;
FICO Xpress v9.8.0, Hyper, solve started 16:56:30, Mar 3, 2026
Heap usage: 1398KB (peak 1398KB, 54KB system)
Minimizing MILP using up to 8 threads and up to 16GB memory, with these control settings:
TIMELIMIT = 60
Original problem has:
996 rows 2981 cols 2270 elements 2178 entities
617 inds
886 gencons
Presolved problem has:
1750 rows 1168 cols 7208 elements 1153 entities
LP relaxation tightened
Presolve finished in 0 seconds
Heap usage: 5518KB (peak 6248KB, 190KB system)
Coefficient range original solved
Coefficients [min,max] : [ 1.00e+00, 5.00e+00] / [ 6.25e-02, 1.88e+00]
RHS and bounds [min,max] : [ 1.00e+00, 1.50e+01] / [ 2.50e-01, 3.90e+01]
Objective [min,max] : [ 6.55e-01, 1.00e+01] / [ 6.55e-01, 1.00e+01]
Autoscaling applied standard scaling
Symmetric problem: generators: 2, support set: 711
Number of orbits: 237, largest orbit: 3
Row orbits: 326, row support: 978
Will try to keep branch and bound tree memory usage below 15.1GB
*** Solution found: 387.306070 Time: 0.08 Heuristic: e ***
Starting concurrent solve with dual (1 thread)
Concurrent-Solve, 0s
Dual
objective sum inf
P 8.8582631 .0000000
------- optimal --------
Concurrent statistics:
Dual: 1286 simplex iterations, 0.02s
Optimal solution found
Its Obj Value S Ninf Nneg Sum Inf Time
1286 8.858263 P 0 0 .000000 0
Dual solved problem
1286 simplex iterations in 0.02 seconds at time 0
Final objective : 8.858263143934892e+00
Max primal violation (abs/rel) : 1.110e-15 / 1.110e-15
Max dual violation (abs/rel) : 7.105e-15 / 7.105e-15
Max complementarity viol. (abs/rel) : 0.0 / 0.0
Starting root cutting & heuristics
Deterministic mode with up to 2 additional threads
Its Type BestSoln BestBound Sols Add Del Gap GInf Time
a 174.620879 8.858263 2 94.93% 0 0
1 K 174.620879 10.031479 2 651 0 94.26% 415 0
P 173.040639 10.031479 3 94.20% 0 0
P 170.694632 10.031479 4 94.12% 0 0
P 129.053008 10.031479 5 92.23% 0 0
P 108.266420 10.031479 6 90.73% 0 0
P 107.266420 10.031479 7 90.65% 0 0
P 106.266420 10.031479 8 90.56% 0 0
P 105.266420 10.031479 9 90.47% 0 0
P 83.409770 10.031479 10 87.97% 0 0
P 82.409770 10.031479 11 87.83% 0 0
P 79.053727 10.031479 12 87.31% 0 0
P 78.829529 10.031479 13 87.27% 0 0
P 77.829529 10.031479 14 87.11% 0 0
P 74.249288 10.031479 15 86.49% 0 0
2 K 74.249288 10.618005 15 244 447 85.70% 656 0
P 66.669048 10.618005 16 84.07% 0 0
P 64.669048 10.618005 17 83.58% 0 0
P 54.508566 10.618005 18 80.52% 0 0
P 53.732763 10.618005 19 80.24% 0 0
P 53.508566 10.618005 20 80.16% 0 0
P 52.508566 10.618005 21 79.78% 0 0
P 51.508566 10.618005 22 79.39% 0 0
P 44.928325 10.618005 23 76.37% 0 0
P 42.928325 10.618005 24 75.27% 0 0
3 K 42.928325 10.900395 24 136 174 74.61% 536 0
P 41.928325 10.900395 25 74.00% 0 0
P 40.928325 10.900395 26 73.37% 0 0
P 39.928325 10.900395 27 72.70% 0 0
4 K 39.928325 11.310295 27 137 104 71.67% 468 0
P 38.928325 11.310295 28 70.95% 0 0
P 36.928325 11.310295 29 69.37% 0 0
5 K 36.928325 11.374333 29 211 119 69.20% 471 0
6 K 36.928325 11.424315 29 86 146 69.06% 476 0
7 K 36.928325 11.450172 29 73 69 68.99% 534 0
8 K 36.928325 11.527816 29 88 49 68.78% 522 0
9 K 36.928325 11.653084 29 146 143 68.44% 530 0
q 22.858263 11.753555 30 48.58% 0 0
10 K 22.858263 11.753555 30 83 79 48.58% 525 0
11 K 22.858263 11.930751 30 78 71 47.81% 494 0
12 K 22.858263 12.167057 30 205 127 46.77% 422 0
13 K 22.858263 12.250232 30 173 148 46.41% 459 0
14 K 22.858263 12.367191 30 164 129 45.90% 324 0
15 K 22.858263 12.528982 30 117 166 45.19% 395 0
16 K 22.858263 12.573604 30 73 119 44.99% 290 0
17 K 22.858263 12.592551 30 56 30 44.91% 285 0
18 K 22.858263 12.601555 30 26 50 44.87% 278 0
19 K 22.858263 12.603192 30 31 18 44.86% 275 0
20 K 22.858263 12.609901 30 18 20 44.83% 273 0
21 K 22.858263 12.613684 30 20 30 44.82% 287 0
22 K 22.858263 12.615898 30 39 46 44.81% 302 0
23 K 22.858263 12.618380 30 35 31 44.80% 293 0
24 K 22.858263 12.620199 30 32 21 44.79% 293 0
25 K 22.858263 12.634125 30 26 264 44.73% 269 0
26 G 22.858263 12.774378 30 40 0 44.11% 270 0
27 G 22.858263 12.923963 30 53 99 43.46% 307 0
Cuts in the matrix : 342
Cut elements in the matrix : 8244
Performing root presolve...
Reduced problem has: 1301 rows 551 columns 10045 elements
Presolve dropped : 791 rows 617 columns 5407 elements
Symmetric problem: generators: 2, support set: 153
Number of orbits: 51, largest orbit: 3
Row orbits: 89, row support: 267
Will try to keep branch and bound tree memory usage below 15.1GB
Crash basis containing 147 structural columns created
Its Obj Value S Ninf Nneg Sum Inf Time
8141 9.114682 P 0 0 .000000 0
Optimal solution found
Dual solved problem
8141 simplex iterations in 0.01 seconds at time 0
Final objective : 9.114682343403359e+00
Max primal violation (abs/rel) : 2.220e-16 / 2.220e-16
Max dual violation (abs/rel) : 0.0 / 0.0
Max complementarity viol. (abs/rel) : 0.0 / 0.0
Starting root cutting & heuristics
Deterministic mode with up to 2 additional threads
Its Type BestSoln BestBound Sols Add Del Gap GInf Time
1 K 22.858263 13.126183 30 64 99 42.58% 287 0
2 K 22.858263 13.199209 30 30 181 42.26% 321 0
Heuristic search 'R' started
Heuristic search 'R' stopped
Cuts in the matrix : 156
Cut elements in the matrix : 3195
Starting tree search.
Deterministic mode with up to 8 running threads and up to 16 tasks.
Heap usage: 12MB (peak 37MB, 608KB system)
Node BestSoln BestBound Sols Active Depth Gap GInf Time
1 22.858263 13.259863 30 2 1 41.99% 297 0
2 22.858263 13.416274 30 2 3 41.31% 310 0
3 22.858263 13.515141 30 3 4 40.87% 279 0
4 22.858263 13.570937 30 4 3 40.63% 268 0
5 22.858263 13.570937 30 5 4 40.63% 232 0
6 22.858263 13.570937 30 6 5 40.63% 181 0
7 22.858263 13.570937 30 7 5 40.63% 247 0
8 22.858263 13.970958 30 8 4 38.88% 288 0
9 22.858263 13.970958 30 9 6 38.88% 243 0
10 22.858263 13.986500 30 10 6 38.81% 201 0
20 22.858263 13.986500 30 18 9 38.81% 287 1
30 22.858263 14.098909 30 26 8 38.32% 206 1
42 22.858263 14.098909 30 36 9 38.32% 93 1
52 22.858263 14.098909 30 45 14 38.32% 231 1
62 22.858263 14.098909 30 48 15 38.32% 199 1
73 22.858263 14.098909 30 56 20 38.32% 60 1
83 22.858263 14.098909 30 79 18 38.32% 192 1
93 22.858263 14.098909 30 89 19 38.32% 151 1
g 101 21.858263 14.098909 31 98 35 35.50% 0 1
Elapsed time (sec): 1, estimated tree completion: 0.00000
Heap usage: 40MB (peak 40MB, 728KB system)
B&B tree size: 337k total
Node BestSoln BestBound Sols Active Depth Gap GInf Time
103 21.858263 14.098909 31 99 21 35.50% 102 1
q 103 19.858263 14.098909 32 100 36 29.00% 0 1
g 185 17.928325 14.098909 33 111 25 21.36% 0 1
229 17.928325 14.098909 33 95 1 21.36% 2 1
329 17.928325 14.098909 33 106 1 21.36% 2 1
429 17.928325 14.205945 33 168 21 20.76% 102 1
535 17.928325 14.205945 33 181 17 20.76% 187 1
641 17.928325 14.237536 33 197 15 20.59% 35 1
751 17.928325 14.237536 33 216 20 20.59% 28 1
854 17.928325 14.237536 33 241 17 20.59% 79 1
956 17.928325 14.341585 33 287 19 20.01% 141 1
1063 17.928325 14.341585 33 292 16 20.01% 37 1
1163 17.928325 14.356895 33 322 15 19.92% 164 1
1265 17.928325 14.356895 33 348 14 19.92% 153 2
1371 17.928325 14.356895 33 405 26 19.92% 79 2
1471 17.928325 14.356895 33 427 21 19.92% 145 2
1581 17.928325 14.356895 33 434 14 19.92% 110 2
1685 17.928325 14.356895 33 460 24 19.92% 58 2
1787 17.928325 14.449573 33 519 15 19.40% 139 2
1896 17.928325 14.467161 33 552 18 19.31% 66 2
Elapsed time (sec): 2, estimated tree completion: 0.36186
Heap usage: 128MB (peak 128MB, 1098KB system)
B&B tree size: 2.5MB total
Node BestSoln BestBound Sols Active Depth Gap GInf Time
1999 17.928325 14.467161 33 584 28 19.31% 21 2
2107 17.928325 14.467161 33 616 17 19.31% 148 2
2211 17.928325 14.467161 33 628 18 19.31% 104 2
2314 17.928325 14.544106 33 650 32 18.88% 51 2
g 2343 16.928325 14.544106 34 656 28 14.08% 0 2
2713 16.928325 14.544106 34 303 1 14.08% 2 2
2814 16.928325 14.544407 34 315 28 14.08% 52 2
2924 16.928325 14.544407 34 337 24 14.08% 34 2
3028 16.928325 14.544407 34 347 1 14.08% 2 2
3135 16.928325 14.544407 34 354 25 14.08% 13 2
3235 16.928325 14.544407 34 363 16 14.08% 16 2
3342 16.928325 14.544407 34 379 25 14.08% 20 2
3448 16.928325 14.619793 34 394 19 13.64% 85 2
3557 16.928325 14.619793 34 413 20 13.64% 69 2
3661 16.928325 14.688055 34 415 8 13.23% 170 2
3773 16.928325 14.725343 34 438 27 13.01% 8 2
3873 16.928325 14.725343 34 465 12 13.01% 52 3
3975 16.928325 14.725343 34 447 21 13.01% 73 3
4087 16.928325 14.746742 34 454 24 12.89% 62 3
4187 16.928325 14.772653 34 455 25 12.73% 63 3
Elapsed time (sec): 3, estimated tree completion: 0.67645
Heap usage: 127MB (peak 128MB, 1098KB system)
B&B tree size: 2.7MB total
Node BestSoln BestBound Sols Active Depth Gap GInf Time
4288 16.928325 14.772653 34 480 11 12.73% 163 3
4388 16.928325 14.807701 34 488 18 12.53% 91 3
4488 16.928325 14.807701 34 487 28 12.53% 45 3
4594 16.928325 14.807701 34 488 17 12.53% 185 3
4699 16.928325 14.807701 34 488 28 12.53% 13 3
4803 16.928325 14.807701 34 501 23 12.53% 18 3
4923 16.928325 14.907555 34 512 31 11.94% 8 3
5023 16.928325 14.907555 34 529 26 11.94% 95 3
5125 16.928325 14.907555 34 510 18 11.94% 15 3
5243 16.928325 14.943412 34 507 28 11.73% 68 3
5348 16.928325 14.943412 34 487 21 11.73% 65 3
5448 16.928325 14.943412 34 466 14 11.73% 106 3
5548 16.928325 14.943412 34 455 13 11.73% 118 3
5649 16.928325 14.982786 34 435 15 11.49% 71 3
5749 16.928325 14.982786 34 421 21 11.49% 74 3
5849 16.928325 14.982786 34 400 21 11.49% 121 3
5955 16.928325 15.067916 34 393 25 10.99% 58 3
6055 16.928325 15.067916 34 371 19 10.99% 54 3
6158 16.928325 15.068970 34 340 27 10.98% 70 3
6260 16.928325 15.068970 34 330 18 10.98% 67 3
Elapsed time (sec): 3, estimated tree completion: 0.86516
Heap usage: 129MB (peak 129MB, 1098KB system)
B&B tree size: 2.8MB total
Node BestSoln BestBound Sols Active Depth Gap GInf Time
6365 16.928325 15.068970 34 295 21 10.98% 126 3
6465 16.928325 15.068970 34 255 16 10.98% 29 3
6565 16.928325 15.068970 34 240 20 10.98% 179 4
6665 16.928325 15.094992 34 219 14 10.83% 86 4
6768 16.928325 15.113909 34 150 16 10.72% 89 4
6868 16.928325 15.113909 34 74 15 10.72% 101 4
6968 16.928325 15.135292 34 55 15 10.59% 18 4
7073 16.928325 15.253468 34 60 14 9.89% 85 4
7174 16.928325 15.253468 34 42 24 9.89% 84 4
7276 16.928325 15.253468 34 30 12 9.89% 41 4
7379 16.928325 15.253468 34 13 12 9.89% 200 4
*** Search completed ***
Uncrunching matrix
Final MIP objective : 1.692832483996361e+01
Final MIP bound : 1.692830791163877e+01
Solution time / primaldual integral : 4.34s/ 27.314068%
Work / work units per second : 5.66 / 1.30
Number of solutions found / nodes : 34 / 7449
Max primal violation (abs/rel) : 0.0 / 0.0
Max integer violation (abs ) : 6.661e-16
XPRESS 9.8.0 (46.01.01): optimal solution; objective 16.92832484
494831 simplex iterations
7449 branching nodes
absmipgap=1.69283e-05, relmipgap=1e-06
Check solution in AMPL#
The below code displays AMPL’s solution correctness indicators (in particular, tolerance violations). Additional Python code can be used for independent checking.
print("AMPL solve result:", ampl.solve_result, " code:", ampl.solve_result_num)
print(
"Minimal variable bound slack:",
ampl.get_value("min {i in 1.._nvars} _var[i].slack"),
)
print(
"Minimal algebraic constraint slack:",
ampl.get_value("min {i in 1.._ncons} _con[i].slack"),
)
print(
"Minimal logical constraint value:",
ampl.get_value("min {i in 1.._nlogcons} _logcon[i].val"),
)
ampl.eval("display _varname, _var.slack;")
ampl.eval("display _conname, _con.slack;")
ampl.eval("display _logconname, _logcon.val;")
AMPL solve result: solved code: 0
Minimal variable bound slack: 0
Minimal algebraic constraint slack: 0
Minimal logical constraint value: 1
: _varname _var.slack :=
1 'slot_pattern[1]' 2
2 'slot_pattern[2]' 2
3 'slot_pattern[3]' 2
4 'slot_pattern[4]' 2
5 'slot_pattern[5]' 2
6 'slot_pattern[6]' 2
7 'slot_pattern[7]' 2
8 'slot_pattern[8]' 2
9 'slot_pattern[9]' 2
10 'slot_pattern[10]' 1
11 'slot_pattern[11]' 1
12 'slot_pattern[12]' 1
13 'slot_pattern[13]' 1
14 'slot_pattern[14]' 1
15 'slot_pattern[15]' 1
16 'slot_pattern[16]' 1
17 'slot_pattern[17]' 1
18 'slot_pattern[18]' 1
19 'slot_pattern[19]' 0
20 'slot_pattern[20]' 0
21 'slot_pattern[21]' 0
22 'slot_pattern[22]' 0
23 'slot_pattern[23]' 0
24 'slot_pattern[24]' 0
25 'slot_pattern[25]' 0
26 'slot_pattern[26]' 0
27 'slot_pattern[27]' 0
28 'slot_pattern[28]' 0
29 'slot_pattern[29]' 0
30 'slot_pattern[30]' 0
31 'slot_pattern[31]' 1
32 'slot_pattern[32]' 1
33 'slot_pattern[33]' 1
34 'slot_pattern[34]' 1
35 'slot_pattern[35]' 1
36 'slot_pattern[36]' 1
37 'slot_pattern[37]' 1
38 'slot_pattern[38]' 0
39 'slot_pattern[39]' 1
40 'slot_pattern[40]' 1
41 'slot_pattern[41]' 1
42 'slot_pattern[42]' 0
43 'slot_pattern[43]' 2
44 'slot_pattern[44]' 2
45 'slot_pattern[45]' 2
46 'slot_pattern[46]' 2
47 'slot_pattern[47]' 2
48 'slot_pattern[48]' 2
49 'slot_pattern[49]' 2
50 'slot_pattern[50]' 2
51 'slot_color_spec_MAX[1,1]' 1
52 'slot_color_spec_MAX[1,2]' 0
53 'slot_color_spec_MAX[1,3]' 1
54 'slot_color_spec_MAX[2,1]' 1
55 'slot_color_spec_MAX[2,2]' 0
56 'slot_color_spec_MAX[2,3]' 1
57 'slot_color_spec_MAX[3,1]' 1
58 'slot_color_spec_MAX[3,2]' 0
59 'slot_color_spec_MAX[3,3]' 1
60 'slot_color_spec_MAX[4,1]' 1
61 'slot_color_spec_MAX[4,2]' 0
62 'slot_color_spec_MAX[4,3]' 1
63 'slot_color_spec_MAX[5,1]' 1
64 'slot_color_spec_MAX[5,2]' 0
65 'slot_color_spec_MAX[5,3]' 1
66 'slot_color_spec_MAX[6,1]' 1
67 'slot_color_spec_MAX[6,2]' 0
68 'slot_color_spec_MAX[6,3]' 1
69 'slot_color_spec_MAX[7,1]' 1
70 'slot_color_spec_MAX[7,2]' 0
71 'slot_color_spec_MAX[7,3]' 1
72 'slot_color_spec_MAX[8,1]' 1
73 'slot_color_spec_MAX[8,2]' 0
74 'slot_color_spec_MAX[8,3]' 1
75 'slot_color_spec_MAX[9,1]' 1
76 'slot_color_spec_MAX[9,2]' 0
77 'slot_color_spec_MAX[9,3]' 1
78 'slot_color_spec_MAX[10,1]' 1
79 'slot_color_spec_MAX[10,2]' 0
80 'slot_color_spec_MAX[10,3]' 1
81 'slot_color_spec_MAX[11,1]' 1
82 'slot_color_spec_MAX[11,2]' 0
83 'slot_color_spec_MAX[11,3]' 1
84 'slot_color_spec_MAX[12,1]' 1
85 'slot_color_spec_MAX[12,2]' 0
86 'slot_color_spec_MAX[12,3]' 1
87 'slot_color_spec_MAX[13,1]' 1
88 'slot_color_spec_MAX[13,2]' 0
89 'slot_color_spec_MAX[13,3]' 1
90 'slot_color_spec_MAX[14,1]' 1
91 'slot_color_spec_MAX[14,2]' 0
92 'slot_color_spec_MAX[14,3]' 1
93 'slot_color_spec_MAX[15,1]' 1
94 'slot_color_spec_MAX[15,2]' 0
95 'slot_color_spec_MAX[15,3]' 1
96 'slot_color_spec_MAX[16,1]' 1
97 'slot_color_spec_MAX[16,2]' 0
98 'slot_color_spec_MAX[16,3]' 1
99 'slot_color_spec_MAX[17,1]' 1
100 'slot_color_spec_MAX[17,2]' 0
101 'slot_color_spec_MAX[17,3]' 1
102 'slot_color_spec_MAX[18,1]' 1
103 'slot_color_spec_MAX[18,2]' 0
104 'slot_color_spec_MAX[18,3]' 1
105 'slot_color_spec_MAX[19,1]' 1
106 'slot_color_spec_MAX[19,2]' 0
107 'slot_color_spec_MAX[19,3]' 1
108 'slot_color_spec_MAX[20,1]' 1
109 'slot_color_spec_MAX[20,2]' 0
110 'slot_color_spec_MAX[20,3]' 1
111 'slot_color_spec_MAX[21,1]' 1
112 'slot_color_spec_MAX[21,2]' 0
113 'slot_color_spec_MAX[21,3]' 1
114 'slot_color_spec_MAX[22,1]' 1
115 'slot_color_spec_MAX[22,2]' 0
116 'slot_color_spec_MAX[22,3]' 1
117 'slot_color_spec_MAX[23,1]' 1
118 'slot_color_spec_MAX[23,2]' 0
119 'slot_color_spec_MAX[23,3]' 1
120 'slot_color_spec_MAX[24,1]' 1
121 'slot_color_spec_MAX[24,2]' 0
122 'slot_color_spec_MAX[24,3]' 1
123 'slot_color_spec_MAX[25,1]' 1
124 'slot_color_spec_MAX[25,2]' 0
125 'slot_color_spec_MAX[25,3]' 1
126 'slot_color_spec_MAX[26,1]' 1
127 'slot_color_spec_MAX[26,2]' 0
128 'slot_color_spec_MAX[26,3]' 1
129 'slot_color_spec_MAX[27,1]' 1
130 'slot_color_spec_MAX[27,2]' 0
131 'slot_color_spec_MAX[27,3]' 1
132 'slot_color_spec_MAX[28,1]' 1
133 'slot_color_spec_MAX[28,2]' 0
134 'slot_color_spec_MAX[28,3]' 1
135 'slot_color_spec_MAX[29,1]' 1
136 'slot_color_spec_MAX[29,2]' 0
137 'slot_color_spec_MAX[29,3]' 1
138 'slot_color_spec_MAX[30,1]' 1
139 'slot_color_spec_MAX[30,2]' 0
140 'slot_color_spec_MAX[30,3]' 1
141 'slot_color_spec_MAX[31,1]' 1
142 'slot_color_spec_MAX[31,2]' 0
143 'slot_color_spec_MAX[31,3]' 1
144 'slot_color_spec_MAX[32,1]' 1
145 'slot_color_spec_MAX[32,2]' 0
146 'slot_color_spec_MAX[32,3]' 1
147 'slot_color_spec_MAX[33,1]' 1
148 'slot_color_spec_MAX[33,2]' 0
149 'slot_color_spec_MAX[33,3]' 1
150 'slot_color_spec_MAX[34,1]' 1
151 'slot_color_spec_MAX[34,2]' 0
152 'slot_color_spec_MAX[34,3]' 1
153 'slot_color_spec_MAX[35,1]' 1
154 'slot_color_spec_MAX[35,2]' 0
155 'slot_color_spec_MAX[35,3]' 1
156 'slot_color_spec_MAX[36,1]' 1
157 'slot_color_spec_MAX[36,2]' 0
158 'slot_color_spec_MAX[36,3]' 1
159 'slot_color_spec_MAX[37,1]' 1
160 'slot_color_spec_MAX[37,2]' 0
161 'slot_color_spec_MAX[37,3]' 1
162 'slot_color_spec_MAX[38,1]' 1
163 'slot_color_spec_MAX[38,2]' 0
164 'slot_color_spec_MAX[38,3]' 1
165 'slot_color_spec_MAX[39,1]' 1
166 'slot_color_spec_MAX[39,2]' 0
167 'slot_color_spec_MAX[39,3]' 1
168 'slot_color_spec_MAX[40,1]' 1
169 'slot_color_spec_MAX[40,2]' 0
170 'slot_color_spec_MAX[40,3]' 1
171 'slot_color_spec_MAX[41,1]' 1
172 'slot_color_spec_MAX[41,2]' 0
173 'slot_color_spec_MAX[41,3]' 1
174 'slot_color_spec_MAX[42,1]' 1
175 'slot_color_spec_MAX[42,2]' 0
176 'slot_color_spec_MAX[42,3]' 1
177 'slot_color_spec_MAX[43,1]' 1
178 'slot_color_spec_MAX[43,2]' 0
179 'slot_color_spec_MAX[43,3]' 1
180 'slot_color_spec_MAX[44,1]' 1
181 'slot_color_spec_MAX[44,2]' 0
182 'slot_color_spec_MAX[44,3]' 1
183 'slot_color_spec_MAX[45,1]' 1
184 'slot_color_spec_MAX[45,2]' 0
185 'slot_color_spec_MAX[45,3]' 1
186 'slot_color_spec_MAX[46,1]' 1
187 'slot_color_spec_MAX[46,2]' 0
188 'slot_color_spec_MAX[46,3]' 1
189 'slot_color_spec_MAX[47,1]' 1
190 'slot_color_spec_MAX[47,2]' 0
191 'slot_color_spec_MAX[47,3]' 1
192 'slot_color_spec_MAX[48,1]' 1
193 'slot_color_spec_MAX[48,2]' 0
194 'slot_color_spec_MAX[48,3]' 1
195 'slot_color_spec_MAX[49,1]' 1
196 'slot_color_spec_MAX[49,2]' 0
197 'slot_color_spec_MAX[49,3]' 1
198 'slot_color_spec_MAX[50,1]' 1
199 'slot_color_spec_MAX[50,2]' 0
200 'slot_color_spec_MAX[50,3]' 1
201 'slot_color_MAX_machine_available[1,1]' 0
202 'slot_color_MAX_machine_available[1,2]' 0
203 'slot_color_MAX_machine_available[1,3]' 0
204 'slot_color_MAX_machine_available[2,1]' 0
205 'slot_color_MAX_machine_available[2,2]' 0
206 'slot_color_MAX_machine_available[2,3]' 0
207 'slot_color_MAX_machine_available[3,1]' 0
208 'slot_color_MAX_machine_available[3,2]' 0
209 'slot_color_MAX_machine_available[3,3]' 0
210 'slot_color_MAX_machine_available[4,1]' 0
211 'slot_color_MAX_machine_available[4,2]' 0
212 'slot_color_MAX_machine_available[4,3]' 0
213 'slot_color_MAX_machine_available[5,1]' 0
214 'slot_color_MAX_machine_available[5,2]' 0
215 'slot_color_MAX_machine_available[5,3]' 0
216 'slot_color_MAX_machine_available[6,1]' 0
217 'slot_color_MAX_machine_available[6,2]' 0
218 'slot_color_MAX_machine_available[6,3]' 0
219 'slot_color_MAX_machine_available[7,1]' 0
220 'slot_color_MAX_machine_available[7,2]' 0
221 'slot_color_MAX_machine_available[7,3]' 0
222 'slot_color_MAX_machine_available[8,1]' 0
223 'slot_color_MAX_machine_available[8,2]' 0
224 'slot_color_MAX_machine_available[8,3]' 0
225 'slot_color_MAX_machine_available[9,1]' 0
226 'slot_color_MAX_machine_available[9,2]' 0
227 'slot_color_MAX_machine_available[9,3]' 0
228 'slot_color_MAX_machine_available[10,1]' 0
229 'slot_color_MAX_machine_available[10,2]' 0
230 'slot_color_MAX_machine_available[10,3]' 0
231 'slot_color_MAX_machine_available[11,1]' 0
232 'slot_color_MAX_machine_available[11,2]' 0
233 'slot_color_MAX_machine_available[11,3]' 0
234 'slot_color_MAX_machine_available[12,1]' 0
235 'slot_color_MAX_machine_available[12,2]' 0
236 'slot_color_MAX_machine_available[12,3]' 0
237 'slot_color_MAX_machine_available[13,1]' 0
238 'slot_color_MAX_machine_available[13,2]' 0
239 'slot_color_MAX_machine_available[13,3]' 0
240 'slot_color_MAX_machine_available[14,1]' 0
241 'slot_color_MAX_machine_available[14,2]' 0
242 'slot_color_MAX_machine_available[14,3]' 0
243 'slot_color_MAX_machine_available[15,1]' 0
244 'slot_color_MAX_machine_available[15,2]' 0
245 'slot_color_MAX_machine_available[15,3]' 0
246 'slot_color_MAX_machine_available[16,1]' 0
247 'slot_color_MAX_machine_available[16,2]' 0
248 'slot_color_MAX_machine_available[16,3]' 0
249 'slot_color_MAX_machine_available[17,1]' 0
250 'slot_color_MAX_machine_available[17,2]' 0
251 'slot_color_MAX_machine_available[17,3]' 0
252 'slot_color_MAX_machine_available[18,1]' 0
253 'slot_color_MAX_machine_available[18,2]' 0
254 'slot_color_MAX_machine_available[18,3]' 0
255 'slot_color_MAX_machine_available[19,1]' 0
256 'slot_color_MAX_machine_available[19,2]' 0
257 'slot_color_MAX_machine_available[19,3]' 0
258 'slot_color_MAX_machine_available[20,1]' 0
259 'slot_color_MAX_machine_available[20,2]' 0
260 'slot_color_MAX_machine_available[20,3]' 0
261 'slot_color_MAX_machine_available[21,1]' 0
262 'slot_color_MAX_machine_available[21,2]' 0
263 'slot_color_MAX_machine_available[21,3]' 0
264 'slot_color_MAX_machine_available[22,1]' 0
265 'slot_color_MAX_machine_available[22,2]' 0
266 'slot_color_MAX_machine_available[22,3]' 0
267 'slot_color_MAX_machine_available[23,1]' 0
268 'slot_color_MAX_machine_available[23,2]' 0
269 'slot_color_MAX_machine_available[23,3]' 0
270 'slot_color_MAX_machine_available[24,1]' 0
271 'slot_color_MAX_machine_available[24,2]' 0
272 'slot_color_MAX_machine_available[24,3]' 0
273 'slot_color_MAX_machine_available[25,1]' 0
274 'slot_color_MAX_machine_available[25,2]' 0
275 'slot_color_MAX_machine_available[25,3]' 0
276 'slot_color_MAX_machine_available[26,1]' 0
277 'slot_color_MAX_machine_available[26,2]' 0
278 'slot_color_MAX_machine_available[26,3]' 0
279 'slot_color_MAX_machine_available[27,1]' 0
280 'slot_color_MAX_machine_available[27,2]' 0
281 'slot_color_MAX_machine_available[27,3]' 0
282 'slot_color_MAX_machine_available[28,1]' 0
283 'slot_color_MAX_machine_available[28,2]' 0
284 'slot_color_MAX_machine_available[28,3]' 0
285 'slot_color_MAX_machine_available[29,1]' 0
286 'slot_color_MAX_machine_available[29,2]' 0
287 'slot_color_MAX_machine_available[29,3]' 0
288 'slot_color_MAX_machine_available[30,1]' 0
289 'slot_color_MAX_machine_available[30,2]' 0
290 'slot_color_MAX_machine_available[30,3]' 0
291 'slot_color_MAX_machine_available[31,1]' 0
292 'slot_color_MAX_machine_available[31,2]' 0
293 'slot_color_MAX_machine_available[31,3]' 0
294 'slot_color_MAX_machine_available[32,1]' 0
295 'slot_color_MAX_machine_available[32,2]' 0
296 'slot_color_MAX_machine_available[32,3]' 0
297 'slot_color_MAX_machine_available[33,1]' 0
298 'slot_color_MAX_machine_available[33,2]' 0
299 'slot_color_MAX_machine_available[33,3]' 0
300 'slot_color_MAX_machine_available[34,1]' 0
301 'slot_color_MAX_machine_available[34,2]' 0
302 'slot_color_MAX_machine_available[34,3]' 0
303 'slot_color_MAX_machine_available[35,1]' 0
304 'slot_color_MAX_machine_available[35,2]' 0
305 'slot_color_MAX_machine_available[35,3]' 0
306 'slot_color_MAX_machine_available[36,1]' 0
307 'slot_color_MAX_machine_available[36,2]' 0
308 'slot_color_MAX_machine_available[36,3]' 0
309 'slot_color_MAX_machine_available[37,1]' 0
310 'slot_color_MAX_machine_available[37,2]' 0
311 'slot_color_MAX_machine_available[37,3]' 0
312 'slot_color_MAX_machine_available[38,1]' 0
313 'slot_color_MAX_machine_available[38,2]' 0
314 'slot_color_MAX_machine_available[38,3]' 0
315 'slot_color_MAX_machine_available[39,1]' 0
316 'slot_color_MAX_machine_available[39,2]' 0
317 'slot_color_MAX_machine_available[39,3]' 0
318 'slot_color_MAX_machine_available[40,1]' 0
319 'slot_color_MAX_machine_available[40,2]' 0
320 'slot_color_MAX_machine_available[40,3]' 0
321 'slot_color_MAX_machine_available[41,1]' 0
322 'slot_color_MAX_machine_available[41,2]' 0
323 'slot_color_MAX_machine_available[41,3]' 0
324 'slot_color_MAX_machine_available[42,1]' 0
325 'slot_color_MAX_machine_available[42,2]' 0
326 'slot_color_MAX_machine_available[42,3]' 0
327 'slot_color_MAX_machine_available[43,1]' 0
328 'slot_color_MAX_machine_available[43,2]' 0
329 'slot_color_MAX_machine_available[43,3]' 0
330 'slot_color_MAX_machine_available[44,1]' 0
331 'slot_color_MAX_machine_available[44,2]' 0
332 'slot_color_MAX_machine_available[44,3]' 0
333 'slot_color_MAX_machine_available[45,1]' 0
334 'slot_color_MAX_machine_available[45,2]' 0
335 'slot_color_MAX_machine_available[45,3]' 0
336 'slot_color_MAX_machine_available[46,1]' 0
337 'slot_color_MAX_machine_available[46,2]' 0
338 'slot_color_MAX_machine_available[46,3]' 0
339 'slot_color_MAX_machine_available[47,1]' 0
340 'slot_color_MAX_machine_available[47,2]' 0
341 'slot_color_MAX_machine_available[47,3]' 0
342 'slot_color_MAX_machine_available[48,1]' 0
343 'slot_color_MAX_machine_available[48,2]' 0
344 'slot_color_MAX_machine_available[48,3]' 0
345 'slot_color_MAX_machine_available[49,1]' 0
346 'slot_color_MAX_machine_available[49,2]' 0
347 'slot_color_MAX_machine_available[49,3]' 0
348 'slot_color_MAX_machine_available[50,1]' 0
349 'slot_color_MAX_machine_available[50,2]' 0
350 'slot_color_MAX_machine_available[50,3]' 0
351 'pattern_use[1]' 8
352 'pattern_use[2]' 14
353 'pattern_use[3]' 1
354 'pattern_use[4]' 8
355 'pattern_use[5]' 11
356 'pattern_missing[1]' 1
357 'pattern_missing[2]' 0
358 'pattern_missing[3]' 0
359 'pattern_missing[4]' 0
360 'pattern_missing[5]' 0
361 'pattern_overuse[1]' 0
362 'pattern_overuse[2]' 0
363 'pattern_overuse[3]' 0
364 'pattern_overuse[4]' 0
365 'pattern_overuse[5]' 0
366 'slot_color_spec[1,1]' 0
367 'slot_color_spec[1,2]' 0
368 'slot_color_spec[2,1]' 0
369 'slot_color_spec[2,2]' 0
370 'slot_color_spec[3,1]' 0
371 'slot_color_spec[3,2]' 0
372 'slot_color_spec[4,1]' 0
373 'slot_color_spec[4,2]' 0
374 'slot_color_spec[5,1]' 0
375 'slot_color_spec[5,2]' 0
376 'slot_color_spec[6,1]' 0
377 'slot_color_spec[6,2]' 0
378 'slot_color_spec[7,1]' 0
379 'slot_color_spec[7,2]' 0
380 'slot_color_spec[8,1]' 0
381 'slot_color_spec[8,2]' 0
382 'slot_color_spec[9,1]' 0
383 'slot_color_spec[9,2]' 0
384 'slot_color_spec[10,1]' 1
385 'slot_color_spec[10,2]' 2
386 'slot_color_spec[11,1]' 1
387 'slot_color_spec[11,2]' 2
388 'slot_color_spec[12,1]' 1
389 'slot_color_spec[12,2]' 2
390 'slot_color_spec[13,1]' 1
391 'slot_color_spec[13,2]' 2
392 'slot_color_spec[14,1]' 1
393 'slot_color_spec[14,2]' 2
394 'slot_color_spec[15,1]' 1
395 'slot_color_spec[15,2]' 2
396 'slot_color_spec[16,1]' 1
397 'slot_color_spec[16,2]' 2
398 'slot_color_spec[17,1]' 1
399 'slot_color_spec[17,2]' 2
400 'slot_color_spec[18,1]' 1
401 'slot_color_spec[18,2]' 2
402 'slot_color_spec[19,1]' 1
403 'slot_color_spec[19,2]' 2
404 'slot_color_spec[20,1]' 1
405 'slot_color_spec[20,2]' 2
406 'slot_color_spec[21,1]' 1
407 'slot_color_spec[21,2]' 2
408 'slot_color_spec[22,1]' 1
409 'slot_color_spec[22,2]' 2
410 'slot_color_spec[23,1]' 1
411 'slot_color_spec[23,2]' 2
412 'slot_color_spec[24,1]' 1
413 'slot_color_spec[24,2]' 2
414 'slot_color_spec[25,1]' 1
415 'slot_color_spec[25,2]' 2
416 'slot_color_spec[26,1]' 1
417 'slot_color_spec[26,2]' 2
418 'slot_color_spec[27,1]' 1
419 'slot_color_spec[27,2]' 2
420 'slot_color_spec[28,1]' 1
421 'slot_color_spec[28,2]' 2
422 'slot_color_spec[29,1]' 1
423 'slot_color_spec[29,2]' 2
424 'slot_color_spec[30,1]' 1
425 'slot_color_spec[30,2]' 2
426 'slot_color_spec[31,1]' 1
427 'slot_color_spec[31,2]' 1
428 'slot_color_spec[32,1]' 1
429 'slot_color_spec[32,2]' 1
430 'slot_color_spec[33,1]' 1
431 'slot_color_spec[33,2]' 1
432 'slot_color_spec[34,1]' 1
433 'slot_color_spec[34,2]' 1
434 'slot_color_spec[35,1]' 1
435 'slot_color_spec[35,2]' 1
436 'slot_color_spec[36,1]' 1
437 'slot_color_spec[36,2]' 1
438 'slot_color_spec[37,1]' 1
439 'slot_color_spec[37,2]' 1
440 'slot_color_spec[38,1]' 1
441 'slot_color_spec[38,2]' 1
442 'slot_color_spec[39,1]' 1
443 'slot_color_spec[39,2]' 1
444 'slot_color_spec[40,1]' 1
445 'slot_color_spec[40,2]' 1
446 'slot_color_spec[41,1]' 1
447 'slot_color_spec[41,2]' 1
448 'slot_color_spec[42,1]' 1
449 'slot_color_spec[42,2]' 0
450 'slot_color_spec[43,1]' 0
451 'slot_color_spec[43,2]' 0
452 'slot_color_spec[44,1]' 0
453 'slot_color_spec[44,2]' 0
454 'slot_color_spec[45,1]' 0
455 'slot_color_spec[45,2]' 0
456 'slot_color_spec[46,1]' 0
457 'slot_color_spec[46,2]' 0
458 'slot_color_spec[47,1]' 0
459 'slot_color_spec[47,2]' 0
460 'slot_color_spec[48,1]' 0
461 'slot_color_spec[48,2]' 0
462 'slot_color_spec[49,1]' 0
463 'slot_color_spec[49,2]' 0
464 'slot_color_spec[50,1]' 0
465 'slot_color_spec[50,2]' 0
466 'slot_color_change[1,1]' 0
467 'slot_color_change[1,2]' 0
468 'slot_color_change[2,1]' 0
469 'slot_color_change[2,2]' 0
470 'slot_color_change[3,1]' 0
471 'slot_color_change[3,2]' 0
472 'slot_color_change[4,1]' 0
473 'slot_color_change[4,2]' 0
474 'slot_color_change[5,1]' 0
475 'slot_color_change[5,2]' 0
476 'slot_color_change[6,1]' 0
477 'slot_color_change[6,2]' 0
478 'slot_color_change[7,1]' 0
479 'slot_color_change[7,2]' 0
480 'slot_color_change[8,1]' 0
481 'slot_color_change[8,2]' 0
482 'slot_color_change[9,1]' 0
483 'slot_color_change[9,2]' 0
484 'slot_color_change[10,1]' 0
485 'slot_color_change[10,2]' 0
486 'slot_color_change[11,1]' 0
487 'slot_color_change[11,2]' 0
488 'slot_color_change[12,1]' 0
489 'slot_color_change[12,2]' 0
490 'slot_color_change[13,1]' 0
491 'slot_color_change[13,2]' 0
492 'slot_color_change[14,1]' 0
493 'slot_color_change[14,2]' 0
494 'slot_color_change[15,1]' 0
495 'slot_color_change[15,2]' 0
496 'slot_color_change[16,1]' 0
497 'slot_color_change[16,2]' 0
498 'slot_color_change[17,1]' 6.66134e-16
499 'slot_color_change[17,2]' 0
500 'slot_color_change[18,1]' 0
501 'slot_color_change[18,2]' 0
502 'slot_color_change[19,1]' 0
503 'slot_color_change[19,2]' 0
504 'slot_color_change[20,1]' 0
505 'slot_color_change[20,2]' 0
506 'slot_color_change[21,1]' 0
507 'slot_color_change[21,2]' 0
508 'slot_color_change[22,1]' 0
509 'slot_color_change[22,2]' 0
510 'slot_color_change[23,1]' 0
511 'slot_color_change[23,2]' 0
512 'slot_color_change[24,1]' 0
513 'slot_color_change[24,2]' 0
514 'slot_color_change[25,1]' 0
515 'slot_color_change[25,2]' 0
516 'slot_color_change[26,1]' 0
517 'slot_color_change[26,2]' 0
518 'slot_color_change[27,1]' 0
519 'slot_color_change[27,2]' 0
520 'slot_color_change[28,1]' 0
521 'slot_color_change[28,2]' 0
522 'slot_color_change[29,1]' 0
523 'slot_color_change[29,2]' 0
524 'slot_color_change[30,1]' 0
525 'slot_color_change[30,2]' 0
526 'slot_color_change[31,1]' 0
527 'slot_color_change[31,2]' 0
528 'slot_color_change[32,1]' 0
529 'slot_color_change[32,2]' 0
530 'slot_color_change[33,1]' 0
531 'slot_color_change[33,2]' 0
532 'slot_color_change[34,1]' 0
533 'slot_color_change[34,2]' 0
534 'slot_color_change[35,1]' 0
535 'slot_color_change[35,2]' 0
536 'slot_color_change[36,1]' 0
537 'slot_color_change[36,2]' 0
538 'slot_color_change[37,1]' 0
539 'slot_color_change[37,2]' 0
540 'slot_color_change[38,1]' 0
541 'slot_color_change[38,2]' 0
542 'slot_color_change[39,1]' 0
543 'slot_color_change[39,2]' 0
544 'slot_color_change[40,1]' 0
545 'slot_color_change[40,2]' 0
546 'slot_color_change[41,1]' 0
547 'slot_color_change[41,2]' 0
548 'slot_color_change[42,1]' 0
549 'slot_color_change[42,2]' 0
550 'slot_color_change[43,1]' 0
551 'slot_color_change[43,2]' 0
552 'slot_color_change[44,1]' 0
553 'slot_color_change[44,2]' 0
554 'slot_color_change[45,1]' 0
555 'slot_color_change[45,2]' 0
556 'slot_color_change[46,1]' 0
557 'slot_color_change[46,2]' 0
558 'slot_color_change[47,1]' 0
559 'slot_color_change[47,2]' 0
560 'slot_color_change[48,1]' 0
561 'slot_color_change[48,2]' 0
562 'slot_color_change[49,1]' 0
563 'slot_color_change[49,2]' 0
564 'slot_color_MAX_change[1,1]' 0
565 'slot_color_MAX_change[1,2]' 0
566 'slot_color_MAX_change[1,3]' 0
567 'slot_color_MAX_change[2,1]' 0
568 'slot_color_MAX_change[2,2]' 0
569 'slot_color_MAX_change[2,3]' 0
570 'slot_color_MAX_change[3,1]' 0
571 'slot_color_MAX_change[3,2]' 0
572 'slot_color_MAX_change[3,3]' 0
573 'slot_color_MAX_change[4,1]' 0
574 'slot_color_MAX_change[4,2]' 0
575 'slot_color_MAX_change[4,3]' 0
576 'slot_color_MAX_change[5,1]' 0
577 'slot_color_MAX_change[5,2]' 0
578 'slot_color_MAX_change[5,3]' 0
579 'slot_color_MAX_change[6,1]' 0
580 'slot_color_MAX_change[6,2]' 0
581 'slot_color_MAX_change[6,3]' 0
582 'slot_color_MAX_change[7,1]' 0
583 'slot_color_MAX_change[7,2]' 0
584 'slot_color_MAX_change[7,3]' 0
585 'slot_color_MAX_change[8,1]' 0
586 'slot_color_MAX_change[8,2]' 0
587 'slot_color_MAX_change[8,3]' 0
588 'slot_color_MAX_change[9,1]' 0
589 'slot_color_MAX_change[9,2]' 0
590 'slot_color_MAX_change[9,3]' 0
591 'slot_color_MAX_change[10,1]' 0
592 'slot_color_MAX_change[10,2]' 0
593 'slot_color_MAX_change[10,3]' 0
594 'slot_color_MAX_change[11,1]' 0
595 'slot_color_MAX_change[11,2]' 0
596 'slot_color_MAX_change[11,3]' 0
597 'slot_color_MAX_change[12,1]' 0
598 'slot_color_MAX_change[12,2]' 0
599 'slot_color_MAX_change[12,3]' 0
600 'slot_color_MAX_change[13,1]' 0
601 'slot_color_MAX_change[13,2]' 0
602 'slot_color_MAX_change[13,3]' 0
603 'slot_color_MAX_change[14,1]' 0
604 'slot_color_MAX_change[14,2]' 0
605 'slot_color_MAX_change[14,3]' 0
606 'slot_color_MAX_change[15,1]' 0
607 'slot_color_MAX_change[15,2]' 0
608 'slot_color_MAX_change[15,3]' 0
609 'slot_color_MAX_change[16,1]' 0
610 'slot_color_MAX_change[16,2]' 0
611 'slot_color_MAX_change[16,3]' 0
612 'slot_color_MAX_change[17,1]' 0
613 'slot_color_MAX_change[17,2]' 0
614 'slot_color_MAX_change[17,3]' 0
615 'slot_color_MAX_change[18,1]' 0
616 'slot_color_MAX_change[18,2]' 0
617 'slot_color_MAX_change[18,3]' 0
618 'slot_color_MAX_change[19,1]' 0
619 'slot_color_MAX_change[19,2]' 0
620 'slot_color_MAX_change[19,3]' 0
621 'slot_color_MAX_change[20,1]' 0
622 'slot_color_MAX_change[20,2]' 0
623 'slot_color_MAX_change[20,3]' 0
624 'slot_color_MAX_change[21,1]' 0
625 'slot_color_MAX_change[21,2]' 0
626 'slot_color_MAX_change[21,3]' 0
627 'slot_color_MAX_change[22,1]' 0
628 'slot_color_MAX_change[22,2]' 0
629 'slot_color_MAX_change[22,3]' 0
630 'slot_color_MAX_change[23,1]' 0
631 'slot_color_MAX_change[23,2]' 0
632 'slot_color_MAX_change[23,3]' 0
633 'slot_color_MAX_change[24,1]' 0
634 'slot_color_MAX_change[24,2]' 0
635 'slot_color_MAX_change[24,3]' 0
636 'slot_color_MAX_change[25,1]' 0
637 'slot_color_MAX_change[25,2]' 0
638 'slot_color_MAX_change[25,3]' 0
639 'slot_color_MAX_change[26,1]' 0
640 'slot_color_MAX_change[26,2]' 0
641 'slot_color_MAX_change[26,3]' 0
642 'slot_color_MAX_change[27,1]' 0
643 'slot_color_MAX_change[27,2]' 0
644 'slot_color_MAX_change[27,3]' 0
645 'slot_color_MAX_change[28,1]' 0
646 'slot_color_MAX_change[28,2]' 0
647 'slot_color_MAX_change[28,3]' 0
648 'slot_color_MAX_change[29,1]' 0
649 'slot_color_MAX_change[29,2]' 0
650 'slot_color_MAX_change[29,3]' 0
651 'slot_color_MAX_change[30,1]' 0
652 'slot_color_MAX_change[30,2]' 0
653 'slot_color_MAX_change[30,3]' 0
654 'slot_color_MAX_change[31,1]' 0
655 'slot_color_MAX_change[31,2]' 0
656 'slot_color_MAX_change[31,3]' 0
657 'slot_color_MAX_change[32,1]' 0
658 'slot_color_MAX_change[32,2]' 0
659 'slot_color_MAX_change[32,3]' 0
660 'slot_color_MAX_change[33,1]' 0
661 'slot_color_MAX_change[33,2]' 0
662 'slot_color_MAX_change[33,3]' 0
663 'slot_color_MAX_change[34,1]' 0
664 'slot_color_MAX_change[34,2]' 0
665 'slot_color_MAX_change[34,3]' 0
666 'slot_color_MAX_change[35,1]' 0
667 'slot_color_MAX_change[35,2]' 0
668 'slot_color_MAX_change[35,3]' 0
669 'slot_color_MAX_change[36,1]' 0
670 'slot_color_MAX_change[36,2]' 0
671 'slot_color_MAX_change[36,3]' 0
672 'slot_color_MAX_change[37,1]' 0
673 'slot_color_MAX_change[37,2]' 0
674 'slot_color_MAX_change[37,3]' 0
675 'slot_color_MAX_change[38,1]' 0
676 'slot_color_MAX_change[38,2]' 0
677 'slot_color_MAX_change[38,3]' 0
678 'slot_color_MAX_change[39,1]' 0
679 'slot_color_MAX_change[39,2]' 0
680 'slot_color_MAX_change[39,3]' 0
681 'slot_color_MAX_change[40,1]' 0
682 'slot_color_MAX_change[40,2]' 0
683 'slot_color_MAX_change[40,3]' 0
684 'slot_color_MAX_change[41,1]' 0
685 'slot_color_MAX_change[41,2]' 0
686 'slot_color_MAX_change[41,3]' 0
687 'slot_color_MAX_change[42,1]' 0
688 'slot_color_MAX_change[42,2]' 0
689 'slot_color_MAX_change[42,3]' 0
690 'slot_color_MAX_change[43,1]' 0
691 'slot_color_MAX_change[43,2]' 0
692 'slot_color_MAX_change[43,3]' 0
693 'slot_color_MAX_change[44,1]' 0
694 'slot_color_MAX_change[44,2]' 0
695 'slot_color_MAX_change[44,3]' 0
696 'slot_color_MAX_change[45,1]' 0
697 'slot_color_MAX_change[45,2]' 0
698 'slot_color_MAX_change[45,3]' 0
699 'slot_color_MAX_change[46,1]' 0
700 'slot_color_MAX_change[46,2]' 0
701 'slot_color_MAX_change[46,3]' 0
702 'slot_color_MAX_change[47,1]' 0
703 'slot_color_MAX_change[47,2]' 0
704 'slot_color_MAX_change[47,3]' 0
705 'slot_color_MAX_change[48,1]' 0
706 'slot_color_MAX_change[48,2]' 0
707 'slot_color_MAX_change[48,3]' 0
708 'slot_color_MAX_change[49,1]' 0
709 'slot_color_MAX_change[49,2]' 0
710 'slot_color_MAX_change[49,3]' 0
;
: _conname _con.slack :=
1 'PatternUse[1]' 0
2 'PatternUse[2]' 0
3 'PatternUse[3]' 0
4 'PatternUse[4]' 0
5 'PatternUse[5]' 0
6 'PatternUseBalance[1]' 0
7 'PatternUseBalance[2]' 0
8 'PatternUseBalance[3]' 0
9 'PatternUseBalance[4]' 0
10 'PatternUseBalance[5]' 0
;
: _logconname _logcon.val :=
1 'PatternChoice[1]' 1
2 'PatternChoice[2]' 1
3 'PatternChoice[3]' 1
4 'PatternChoice[4]' 1
5 'PatternChoice[5]' 1
6 'PatternChoice[6]' 1
7 'PatternChoice[7]' 1
8 'PatternChoice[8]' 1
9 'PatternChoice[9]' 1
10 'PatternChoice[10]' 1
11 'PatternChoice[11]' 1
12 'PatternChoice[12]' 1
13 'PatternChoice[13]' 1
14 'PatternChoice[14]' 1
15 'PatternChoice[15]' 1
16 'PatternChoice[16]' 1
17 'PatternChoice[17]' 1
18 'PatternChoice[18]' 1
19 'PatternChoice[19]' 1
20 'PatternChoice[20]' 1
21 'PatternChoice[21]' 1
22 'PatternChoice[22]' 1
23 'PatternChoice[23]' 1
24 'PatternChoice[24]' 1
25 'PatternChoice[25]' 1
26 'PatternChoice[26]' 1
27 'PatternChoice[27]' 1
28 'PatternChoice[28]' 1
29 'PatternChoice[29]' 1
30 'PatternChoice[30]' 1
31 'PatternChoice[31]' 1
32 'PatternChoice[32]' 1
33 'PatternChoice[33]' 1
34 'PatternChoice[34]' 1
35 'PatternChoice[35]' 1
36 'PatternChoice[36]' 1
37 'PatternChoice[37]' 1
38 'PatternChoice[38]' 1
39 'PatternChoice[39]' 1
40 'PatternChoice[40]' 1
41 'PatternChoice[41]' 1
42 'PatternChoice[42]' 1
43 'PatternChoice[43]' 1
44 'PatternChoice[44]' 1
45 'PatternChoice[45]' 1
46 'PatternChoice[46]' 1
47 'PatternChoice[47]' 1
48 'PatternChoice[48]' 1
49 'PatternChoice[49]' 1
50 'PatternChoice[50]' 1
51 'ColorSimpleSpec[1,1,1]' 1
52 'ColorSimpleSpec[1,1,2]' 1
53 'ColorSimpleSpec[1,3,1]' 1
54 'ColorSimpleSpec[1,3,2]' 1
55 'ColorSimpleSpec[2,1,1]' 1
56 'ColorSimpleSpec[2,1,2]' 1
57 'ColorSimpleSpec[2,3,1]' 1
58 'ColorSimpleSpec[2,3,2]' 1
59 'ColorSimpleSpec[3,2,1]' 1
60 'ColorSimpleSpec[3,2,2]' 1
61 'ColorSimpleSpec[3,4,1]' 1
62 'ColorSimpleSpec[3,4,2]' 1
63 'ColorSimpleSpec[4,2,1]' 1
64 'ColorSimpleSpec[4,2,2]' 1
65 'ColorSimpleSpec[4,4,1]' 1
66 'ColorSimpleSpec[4,4,2]' 1
67 'ColorSimpleSpec[5,2,1]' 1
68 'ColorSimpleSpec[5,2,2]' 1
69 'ColorSimpleSpec[5,4,1]' 1
70 'ColorSimpleSpec[5,4,2]' 1
71 'ColorSimpleSpec[6,2,1]' 1
72 'ColorSimpleSpec[6,2,2]' 1
73 'ColorSimpleSpec[6,4,1]' 1
74 'ColorSimpleSpec[6,4,2]' 1
75 'ColorSimpleSpec[7,2,1]' 1
76 'ColorSimpleSpec[7,2,2]' 1
77 'ColorSimpleSpec[7,4,1]' 1
78 'ColorSimpleSpec[7,4,2]' 1
79 'ColorSimpleSpec[8,2,1]' 1
80 'ColorSimpleSpec[8,2,2]' 1
81 'ColorSimpleSpec[8,4,1]' 1
82 'ColorSimpleSpec[8,4,2]' 1
83 'ColorSimpleSpec[9,2,1]' 1
84 'ColorSimpleSpec[9,2,2]' 1
85 'ColorSimpleSpec[9,4,1]' 1
86 'ColorSimpleSpec[9,4,2]' 1
87 'ColorSimpleSpec[10,1,1]' 1
88 'ColorSimpleSpec[10,1,2]' 1
89 'ColorSimpleSpec[10,3,1]' 1
90 'ColorSimpleSpec[10,3,2]' 1
91 'ColorSimpleSpec[11,1,1]' 1
92 'ColorSimpleSpec[11,1,2]' 1
93 'ColorSimpleSpec[11,3,1]' 1
94 'ColorSimpleSpec[11,3,2]' 1
95 'ColorSimpleSpec[12,1,1]' 1
96 'ColorSimpleSpec[12,1,2]' 1
97 'ColorSimpleSpec[12,3,1]' 1
98 'ColorSimpleSpec[12,3,2]' 1
99 'ColorSimpleSpec[13,1,1]' 1
100 'ColorSimpleSpec[13,1,2]' 1
101 'ColorSimpleSpec[13,3,1]' 1
102 'ColorSimpleSpec[13,3,2]' 1
103 'ColorSimpleSpec[14,1,1]' 1
104 'ColorSimpleSpec[14,1,2]' 1
105 'ColorSimpleSpec[14,3,1]' 1
106 'ColorSimpleSpec[14,3,2]' 1
107 'ColorSimpleSpec[15,1,1]' 1
108 'ColorSimpleSpec[15,1,2]' 1
109 'ColorSimpleSpec[15,3,1]' 1
110 'ColorSimpleSpec[15,3,2]' 1
111 'ColorSimpleSpec[16,1,1]' 1
112 'ColorSimpleSpec[16,1,2]' 1
113 'ColorSimpleSpec[16,3,1]' 1
114 'ColorSimpleSpec[16,3,2]' 1
115 'ColorSimpleSpec[17,1,1]' 1
116 'ColorSimpleSpec[17,1,2]' 1
117 'ColorSimpleSpec[17,3,1]' 1
118 'ColorSimpleSpec[17,3,2]' 1
119 'ColorSimpleSpec[18,1,1]' 1
120 'ColorSimpleSpec[18,1,2]' 1
121 'ColorSimpleSpec[18,3,1]' 1
122 'ColorSimpleSpec[18,3,2]' 1
123 'ColorSimpleSpec[19,2,1]' 1
124 'ColorSimpleSpec[19,2,2]' 1
125 'ColorSimpleSpec[19,4,1]' 1
126 'ColorSimpleSpec[19,4,2]' 1
127 'ColorSimpleSpec[19,5,1]' 1
128 'ColorSimpleSpec[19,5,2]' 1
129 'ColorSimpleSpec[20,2,1]' 1
130 'ColorSimpleSpec[20,2,2]' 1
131 'ColorSimpleSpec[20,4,1]' 1
132 'ColorSimpleSpec[20,4,2]' 1
133 'ColorSimpleSpec[20,5,1]' 1
134 'ColorSimpleSpec[20,5,2]' 1
135 'ColorSimpleSpec[21,2,1]' 1
136 'ColorSimpleSpec[21,2,2]' 1
137 'ColorSimpleSpec[21,4,1]' 1
138 'ColorSimpleSpec[21,4,2]' 1
139 'ColorSimpleSpec[21,5,1]' 1
140 'ColorSimpleSpec[21,5,2]' 1
141 'ColorSimpleSpec[22,2,1]' 1
142 'ColorSimpleSpec[22,2,2]' 1
143 'ColorSimpleSpec[22,4,1]' 1
144 'ColorSimpleSpec[22,4,2]' 1
145 'ColorSimpleSpec[22,5,1]' 1
146 'ColorSimpleSpec[22,5,2]' 1
147 'ColorSimpleSpec[23,2,1]' 1
148 'ColorSimpleSpec[23,2,2]' 1
149 'ColorSimpleSpec[23,4,1]' 1
150 'ColorSimpleSpec[23,4,2]' 1
151 'ColorSimpleSpec[23,5,1]' 1
152 'ColorSimpleSpec[23,5,2]' 1
153 'ColorSimpleSpec[24,2,1]' 1
154 'ColorSimpleSpec[24,2,2]' 1
155 'ColorSimpleSpec[24,4,1]' 1
156 'ColorSimpleSpec[24,4,2]' 1
157 'ColorSimpleSpec[24,5,1]' 1
158 'ColorSimpleSpec[24,5,2]' 1
159 'ColorSimpleSpec[25,2,1]' 1
160 'ColorSimpleSpec[25,2,2]' 1
161 'ColorSimpleSpec[25,4,1]' 1
162 'ColorSimpleSpec[25,4,2]' 1
163 'ColorSimpleSpec[25,5,1]' 1
164 'ColorSimpleSpec[25,5,2]' 1
165 'ColorSimpleSpec[26,2,1]' 1
166 'ColorSimpleSpec[26,2,2]' 1
167 'ColorSimpleSpec[26,4,1]' 1
168 'ColorSimpleSpec[26,4,2]' 1
169 'ColorSimpleSpec[26,5,1]' 1
170 'ColorSimpleSpec[26,5,2]' 1
171 'ColorSimpleSpec[27,2,1]' 1
172 'ColorSimpleSpec[27,2,2]' 1
173 'ColorSimpleSpec[27,4,1]' 1
174 'ColorSimpleSpec[27,4,2]' 1
175 'ColorSimpleSpec[27,5,1]' 1
176 'ColorSimpleSpec[27,5,2]' 1
177 'ColorSimpleSpec[28,2,1]' 1
178 'ColorSimpleSpec[28,2,2]' 1
179 'ColorSimpleSpec[28,4,1]' 1
180 'ColorSimpleSpec[28,4,2]' 1
181 'ColorSimpleSpec[28,5,1]' 1
182 'ColorSimpleSpec[28,5,2]' 1
183 'ColorSimpleSpec[29,2,1]' 1
184 'ColorSimpleSpec[29,2,2]' 1
185 'ColorSimpleSpec[29,4,1]' 1
186 'ColorSimpleSpec[29,4,2]' 1
187 'ColorSimpleSpec[29,5,1]' 1
188 'ColorSimpleSpec[29,5,2]' 1
189 'ColorSimpleSpec[30,2,1]' 1
190 'ColorSimpleSpec[30,2,2]' 1
191 'ColorSimpleSpec[30,4,1]' 1
192 'ColorSimpleSpec[30,4,2]' 1
193 'ColorSimpleSpec[30,5,1]' 1
194 'ColorSimpleSpec[30,5,2]' 1
195 'ColorSimpleSpec[31,2,1]' 1
196 'ColorSimpleSpec[31,2,2]' 1
197 'ColorSimpleSpec[31,4,1]' 1
198 'ColorSimpleSpec[31,4,2]' 1
199 'ColorSimpleSpec[31,5,1]' 1
200 'ColorSimpleSpec[31,5,2]' 1
201 'ColorSimpleSpec[32,2,1]' 1
202 'ColorSimpleSpec[32,2,2]' 1
203 'ColorSimpleSpec[32,4,1]' 1
204 'ColorSimpleSpec[32,4,2]' 1
205 'ColorSimpleSpec[32,5,1]' 1
206 'ColorSimpleSpec[32,5,2]' 1
207 'ColorSimpleSpec[33,2,1]' 1
208 'ColorSimpleSpec[33,2,2]' 1
209 'ColorSimpleSpec[33,4,1]' 1
210 'ColorSimpleSpec[33,4,2]' 1
211 'ColorSimpleSpec[33,5,1]' 1
212 'ColorSimpleSpec[33,5,2]' 1
213 'ColorSimpleSpec[34,2,1]' 1
214 'ColorSimpleSpec[34,2,2]' 1
215 'ColorSimpleSpec[34,4,1]' 1
216 'ColorSimpleSpec[34,4,2]' 1
217 'ColorSimpleSpec[34,5,1]' 1
218 'ColorSimpleSpec[34,5,2]' 1
219 'ColorSimpleSpec[35,2,1]' 1
220 'ColorSimpleSpec[35,2,2]' 1
221 'ColorSimpleSpec[35,4,1]' 1
222 'ColorSimpleSpec[35,4,2]' 1
223 'ColorSimpleSpec[35,5,1]' 1
224 'ColorSimpleSpec[35,5,2]' 1
225 'ColorSimpleSpec[36,2,1]' 1
226 'ColorSimpleSpec[36,2,2]' 1
227 'ColorSimpleSpec[36,4,1]' 1
228 'ColorSimpleSpec[36,4,2]' 1
229 'ColorSimpleSpec[36,5,1]' 1
230 'ColorSimpleSpec[36,5,2]' 1
231 'ColorSimpleSpec[37,2,1]' 1
232 'ColorSimpleSpec[37,2,2]' 1
233 'ColorSimpleSpec[37,4,1]' 1
234 'ColorSimpleSpec[37,4,2]' 1
235 'ColorSimpleSpec[37,5,1]' 1
236 'ColorSimpleSpec[37,5,2]' 1
237 'ColorSimpleSpec[38,2,1]' 1
238 'ColorSimpleSpec[38,2,2]' 1
239 'ColorSimpleSpec[38,4,1]' 1
240 'ColorSimpleSpec[38,4,2]' 1
241 'ColorSimpleSpec[38,5,1]' 1
242 'ColorSimpleSpec[38,5,2]' 1
243 'ColorSimpleSpec[39,2,1]' 1
244 'ColorSimpleSpec[39,2,2]' 1
245 'ColorSimpleSpec[39,4,1]' 1
246 'ColorSimpleSpec[39,4,2]' 1
247 'ColorSimpleSpec[39,5,1]' 1
248 'ColorSimpleSpec[39,5,2]' 1
249 'ColorSimpleSpec[40,2,1]' 1
250 'ColorSimpleSpec[40,2,2]' 1
251 'ColorSimpleSpec[40,4,1]' 1
252 'ColorSimpleSpec[40,4,2]' 1
253 'ColorSimpleSpec[40,5,1]' 1
254 'ColorSimpleSpec[40,5,2]' 1
255 'ColorSimpleSpec[41,2,1]' 1
256 'ColorSimpleSpec[41,2,2]' 1
257 'ColorSimpleSpec[41,4,1]' 1
258 'ColorSimpleSpec[41,4,2]' 1
259 'ColorSimpleSpec[42,2,1]' 1
260 'ColorSimpleSpec[42,2,2]' 1
261 'ColorSimpleSpec[42,4,1]' 1
262 'ColorSimpleSpec[42,4,2]' 1
263 'ColorSimpleSpec[43,2,1]' 1
264 'ColorSimpleSpec[43,2,2]' 1
265 'ColorSimpleSpec[43,4,1]' 1
266 'ColorSimpleSpec[43,4,2]' 1
267 'ColorSimpleSpec[44,2,1]' 1
268 'ColorSimpleSpec[44,2,2]' 1
269 'ColorSimpleSpec[44,4,1]' 1
270 'ColorSimpleSpec[44,4,2]' 1
271 'ColorSimpleSpec[45,2,1]' 1
272 'ColorSimpleSpec[45,2,2]' 1
273 'ColorSimpleSpec[45,4,1]' 1
274 'ColorSimpleSpec[45,4,2]' 1
275 'ColorSimpleSpec[46,2,1]' 1
276 'ColorSimpleSpec[46,2,2]' 1
277 'ColorSimpleSpec[46,4,1]' 1
278 'ColorSimpleSpec[46,4,2]' 1
279 'ColorSimpleSpec[47,2,1]' 1
280 'ColorSimpleSpec[47,2,2]' 1
281 'ColorSimpleSpec[47,4,1]' 1
282 'ColorSimpleSpec[47,4,2]' 1
283 'ColorSimpleSpec[48,2,1]' 1
284 'ColorSimpleSpec[48,2,2]' 1
285 'ColorSimpleSpec[48,4,1]' 1
286 'ColorSimpleSpec[48,4,2]' 1
287 'ColorSimpleSpec[49,2,1]' 1
288 'ColorSimpleSpec[49,2,2]' 1
289 'ColorSimpleSpec[49,4,1]' 1
290 'ColorSimpleSpec[49,4,2]' 1
291 'ColorSimpleSpec[50,2,1]' 1
292 'ColorSimpleSpec[50,2,2]' 1
293 'ColorSimpleSpec[50,4,1]' 1
294 'ColorSimpleSpec[50,4,2]' 1
295 'ColorSimpleChanges[1,1]' 1
296 'ColorSimpleChanges[1,2]' 1
297 'ColorSimpleChanges[2,1]' 1
298 'ColorSimpleChanges[2,2]' 1
299 'ColorSimpleChanges[3,1]' 1
300 'ColorSimpleChanges[3,2]' 1
301 'ColorSimpleChanges[4,1]' 1
302 'ColorSimpleChanges[4,2]' 1
303 'ColorSimpleChanges[5,1]' 1
304 'ColorSimpleChanges[5,2]' 1
305 'ColorSimpleChanges[6,1]' 1
306 'ColorSimpleChanges[6,2]' 1
307 'ColorSimpleChanges[7,1]' 1
308 'ColorSimpleChanges[7,2]' 1
309 'ColorSimpleChanges[8,1]' 1
310 'ColorSimpleChanges[8,2]' 1
311 'ColorSimpleChanges[9,1]' 1
312 'ColorSimpleChanges[9,2]' 1
313 'ColorSimpleChanges[10,1]' 1
314 'ColorSimpleChanges[10,2]' 1
315 'ColorSimpleChanges[11,1]' 1
316 'ColorSimpleChanges[11,2]' 1
317 'ColorSimpleChanges[12,1]' 1
318 'ColorSimpleChanges[12,2]' 1
319 'ColorSimpleChanges[13,1]' 1
320 'ColorSimpleChanges[13,2]' 1
321 'ColorSimpleChanges[14,1]' 1
322 'ColorSimpleChanges[14,2]' 1
323 'ColorSimpleChanges[15,1]' 1
324 'ColorSimpleChanges[15,2]' 1
325 'ColorSimpleChanges[16,1]' 1
326 'ColorSimpleChanges[16,2]' 1
327 'ColorSimpleChanges[17,1]' 1
328 'ColorSimpleChanges[17,2]' 1
329 'ColorSimpleChanges[18,1]' 1
330 'ColorSimpleChanges[18,2]' 1
331 'ColorSimpleChanges[19,1]' 1
332 'ColorSimpleChanges[19,2]' 1
333 'ColorSimpleChanges[20,1]' 1
334 'ColorSimpleChanges[20,2]' 1
335 'ColorSimpleChanges[21,1]' 1
336 'ColorSimpleChanges[21,2]' 1
337 'ColorSimpleChanges[22,1]' 1
338 'ColorSimpleChanges[22,2]' 1
339 'ColorSimpleChanges[23,1]' 1
340 'ColorSimpleChanges[23,2]' 1
341 'ColorSimpleChanges[24,1]' 1
342 'ColorSimpleChanges[24,2]' 1
343 'ColorSimpleChanges[25,1]' 1
344 'ColorSimpleChanges[25,2]' 1
345 'ColorSimpleChanges[26,1]' 1
346 'ColorSimpleChanges[26,2]' 1
347 'ColorSimpleChanges[27,1]' 1
348 'ColorSimpleChanges[27,2]' 1
349 'ColorSimpleChanges[28,1]' 1
350 'ColorSimpleChanges[28,2]' 1
351 'ColorSimpleChanges[29,1]' 1
352 'ColorSimpleChanges[29,2]' 1
353 'ColorSimpleChanges[30,1]' 1
354 'ColorSimpleChanges[30,2]' 1
355 'ColorSimpleChanges[31,1]' 1
356 'ColorSimpleChanges[31,2]' 1
357 'ColorSimpleChanges[32,1]' 1
358 'ColorSimpleChanges[32,2]' 1
359 'ColorSimpleChanges[33,1]' 1
360 'ColorSimpleChanges[33,2]' 1
361 'ColorSimpleChanges[34,1]' 1
362 'ColorSimpleChanges[34,2]' 1
363 'ColorSimpleChanges[35,1]' 1
364 'ColorSimpleChanges[35,2]' 1
365 'ColorSimpleChanges[36,1]' 1
366 'ColorSimpleChanges[36,2]' 1
367 'ColorSimpleChanges[37,1]' 1
368 'ColorSimpleChanges[37,2]' 1
369 'ColorSimpleChanges[38,1]' 1
370 'ColorSimpleChanges[38,2]' 1
371 'ColorSimpleChanges[39,1]' 1
372 'ColorSimpleChanges[39,2]' 1
373 'ColorSimpleChanges[40,1]' 1
374 'ColorSimpleChanges[40,2]' 1
375 'ColorSimpleChanges[41,1]' 1
376 'ColorSimpleChanges[41,2]' 1
377 'ColorSimpleChanges[42,1]' 1
378 'ColorSimpleChanges[42,2]' 1
379 'ColorSimpleChanges[43,1]' 1
380 'ColorSimpleChanges[43,2]' 1
381 'ColorSimpleChanges[44,1]' 1
382 'ColorSimpleChanges[44,2]' 1
383 'ColorSimpleChanges[45,1]' 1
384 'ColorSimpleChanges[45,2]' 1
385 'ColorSimpleChanges[46,1]' 1
386 'ColorSimpleChanges[46,2]' 1
387 'ColorSimpleChanges[47,1]' 1
388 'ColorSimpleChanges[47,2]' 1
389 'ColorSimpleChanges[48,1]' 1
390 'ColorSimpleChanges[48,2]' 1
391 'ColorSimpleChanges[49,1]' 1
392 'ColorSimpleChanges[49,2]' 1
393 'ColorMAXSpec[1,1]' 1
394 'ColorMAXSpec[2,1]' 1
395 'ColorMAXSpec[3,2]' 1
396 'ColorMAXSpec[4,2]' 1
397 'ColorMAXSpec[5,2]' 1
398 'ColorMAXSpec[6,2]' 1
399 'ColorMAXSpec[7,2]' 1
400 'ColorMAXSpec[8,2]' 1
401 'ColorMAXSpec[9,2]' 1
402 'ColorMAXSpec[10,1]' 1
403 'ColorMAXSpec[11,1]' 1
404 'ColorMAXSpec[12,1]' 1
405 'ColorMAXSpec[13,1]' 1
406 'ColorMAXSpec[14,1]' 1
407 'ColorMAXSpec[15,1]' 1
408 'ColorMAXSpec[16,1]' 1
409 'ColorMAXSpec[17,1]' 1
410 'ColorMAXSpec[18,1]' 1
411 'ColorMAXSpec[19,2]' 1
412 'ColorMAXSpec[20,2]' 1
413 'ColorMAXSpec[21,2]' 1
414 'ColorMAXSpec[22,2]' 1
415 'ColorMAXSpec[23,2]' 1
416 'ColorMAXSpec[24,2]' 1
417 'ColorMAXSpec[25,2]' 1
418 'ColorMAXSpec[26,2]' 1
419 'ColorMAXSpec[27,2]' 1
420 'ColorMAXSpec[28,2]' 1
421 'ColorMAXSpec[29,2]' 1
422 'ColorMAXSpec[30,2]' 1
423 'ColorMAXSpec[31,2]' 1
424 'ColorMAXSpec[32,2]' 1
425 'ColorMAXSpec[33,2]' 1
426 'ColorMAXSpec[34,2]' 1
427 'ColorMAXSpec[35,2]' 1
428 'ColorMAXSpec[36,2]' 1
429 'ColorMAXSpec[37,2]' 1
430 'ColorMAXSpec[38,2]' 1
431 'ColorMAXSpec[39,2]' 1
432 'ColorMAXSpec[40,2]' 1
433 'ColorMAXSpec[41,2]' 1
434 'ColorMAXSpec[42,2]' 1
435 'ColorMAXSpec[43,2]' 1
436 'ColorMAXSpec[44,2]' 1
437 'ColorMAXSpec[45,2]' 1
438 'ColorMAXSpec[46,2]' 1
439 'ColorMAXSpec[47,2]' 1
440 'ColorMAXSpec[48,2]' 1
441 'ColorMAXSpec[49,2]' 1
442 'ColorMAXSpec[50,2]' 1
443 'ColorMAXChanges[1,1]' 1
444 'ColorMAXChanges[1,2]' 1
445 'ColorMAXChanges[1,3]' 1
446 'ColorMAXChanges[2,1]' 1
447 'ColorMAXChanges[2,2]' 1
448 'ColorMAXChanges[2,3]' 1
449 'ColorMAXChanges[3,1]' 1
450 'ColorMAXChanges[3,2]' 1
451 'ColorMAXChanges[3,3]' 1
452 'ColorMAXChanges[4,1]' 1
453 'ColorMAXChanges[4,2]' 1
454 'ColorMAXChanges[4,3]' 1
455 'ColorMAXChanges[5,1]' 1
456 'ColorMAXChanges[5,2]' 1
457 'ColorMAXChanges[5,3]' 1
458 'ColorMAXChanges[6,1]' 1
459 'ColorMAXChanges[6,2]' 1
460 'ColorMAXChanges[6,3]' 1
461 'ColorMAXChanges[7,1]' 1
462 'ColorMAXChanges[7,2]' 1
463 'ColorMAXChanges[7,3]' 1
464 'ColorMAXChanges[8,1]' 1
465 'ColorMAXChanges[8,2]' 1
466 'ColorMAXChanges[8,3]' 1
467 'ColorMAXChanges[9,1]' 1
468 'ColorMAXChanges[9,2]' 1
469 'ColorMAXChanges[9,3]' 1
470 'ColorMAXChanges[10,1]' 1
471 'ColorMAXChanges[10,2]' 1
472 'ColorMAXChanges[10,3]' 1
473 'ColorMAXChanges[11,1]' 1
474 'ColorMAXChanges[11,2]' 1
475 'ColorMAXChanges[11,3]' 1
476 'ColorMAXChanges[12,1]' 1
477 'ColorMAXChanges[12,2]' 1
478 'ColorMAXChanges[12,3]' 1
479 'ColorMAXChanges[13,1]' 1
480 'ColorMAXChanges[13,2]' 1
481 'ColorMAXChanges[13,3]' 1
482 'ColorMAXChanges[14,1]' 1
483 'ColorMAXChanges[14,2]' 1
484 'ColorMAXChanges[14,3]' 1
485 'ColorMAXChanges[15,1]' 1
486 'ColorMAXChanges[15,2]' 1
487 'ColorMAXChanges[15,3]' 1
488 'ColorMAXChanges[16,1]' 1
489 'ColorMAXChanges[16,2]' 1
490 'ColorMAXChanges[16,3]' 1
491 'ColorMAXChanges[17,1]' 1
492 'ColorMAXChanges[17,2]' 1
493 'ColorMAXChanges[17,3]' 1
494 'ColorMAXChanges[18,1]' 1
495 'ColorMAXChanges[18,2]' 1
496 'ColorMAXChanges[18,3]' 1
497 'ColorMAXChanges[19,1]' 1
498 'ColorMAXChanges[19,2]' 1
499 'ColorMAXChanges[19,3]' 1
500 'ColorMAXChanges[20,1]' 1
501 'ColorMAXChanges[20,2]' 1
502 'ColorMAXChanges[20,3]' 1
503 'ColorMAXChanges[21,1]' 1
504 'ColorMAXChanges[21,2]' 1
505 'ColorMAXChanges[21,3]' 1
506 'ColorMAXChanges[22,1]' 1
507 'ColorMAXChanges[22,2]' 1
508 'ColorMAXChanges[22,3]' 1
509 'ColorMAXChanges[23,1]' 1
510 'ColorMAXChanges[23,2]' 1
511 'ColorMAXChanges[23,3]' 1
512 'ColorMAXChanges[24,1]' 1
513 'ColorMAXChanges[24,2]' 1
514 'ColorMAXChanges[24,3]' 1
515 'ColorMAXChanges[25,1]' 1
516 'ColorMAXChanges[25,2]' 1
517 'ColorMAXChanges[25,3]' 1
518 'ColorMAXChanges[26,1]' 1
519 'ColorMAXChanges[26,2]' 1
520 'ColorMAXChanges[26,3]' 1
521 'ColorMAXChanges[27,1]' 1
522 'ColorMAXChanges[27,2]' 1
523 'ColorMAXChanges[27,3]' 1
524 'ColorMAXChanges[28,1]' 1
525 'ColorMAXChanges[28,2]' 1
526 'ColorMAXChanges[28,3]' 1
527 'ColorMAXChanges[29,1]' 1
528 'ColorMAXChanges[29,2]' 1
529 'ColorMAXChanges[29,3]' 1
530 'ColorMAXChanges[30,1]' 1
531 'ColorMAXChanges[30,2]' 1
532 'ColorMAXChanges[30,3]' 1
533 'ColorMAXChanges[31,1]' 1
534 'ColorMAXChanges[31,2]' 1
535 'ColorMAXChanges[31,3]' 1
536 'ColorMAXChanges[32,1]' 1
537 'ColorMAXChanges[32,2]' 1
538 'ColorMAXChanges[32,3]' 1
539 'ColorMAXChanges[33,1]' 1
540 'ColorMAXChanges[33,2]' 1
541 'ColorMAXChanges[33,3]' 1
542 'ColorMAXChanges[34,1]' 1
543 'ColorMAXChanges[34,2]' 1
544 'ColorMAXChanges[34,3]' 1
545 'ColorMAXChanges[35,1]' 1
546 'ColorMAXChanges[35,2]' 1
547 'ColorMAXChanges[35,3]' 1
548 'ColorMAXChanges[36,1]' 1
549 'ColorMAXChanges[36,2]' 1
550 'ColorMAXChanges[36,3]' 1
551 'ColorMAXChanges[37,1]' 1
552 'ColorMAXChanges[37,2]' 1
553 'ColorMAXChanges[37,3]' 1
554 'ColorMAXChanges[38,1]' 1
555 'ColorMAXChanges[38,2]' 1
556 'ColorMAXChanges[38,3]' 1
557 'ColorMAXChanges[39,1]' 1
558 'ColorMAXChanges[39,2]' 1
559 'ColorMAXChanges[39,3]' 1
560 'ColorMAXChanges[40,1]' 1
561 'ColorMAXChanges[40,2]' 1
562 'ColorMAXChanges[40,3]' 1
563 'ColorMAXChanges[41,1]' 1
564 'ColorMAXChanges[41,2]' 1
565 'ColorMAXChanges[41,3]' 1
566 'ColorMAXChanges[42,1]' 1
567 'ColorMAXChanges[42,2]' 1
568 'ColorMAXChanges[42,3]' 1
569 'ColorMAXChanges[43,1]' 1
570 'ColorMAXChanges[43,2]' 1
571 'ColorMAXChanges[43,3]' 1
572 'ColorMAXChanges[44,1]' 1
573 'ColorMAXChanges[44,2]' 1
574 'ColorMAXChanges[44,3]' 1
575 'ColorMAXChanges[45,1]' 1
576 'ColorMAXChanges[45,2]' 1
577 'ColorMAXChanges[45,3]' 1
578 'ColorMAXChanges[46,1]' 1
579 'ColorMAXChanges[46,2]' 1
580 'ColorMAXChanges[46,3]' 1
581 'ColorMAXChanges[47,1]' 1
582 'ColorMAXChanges[47,2]' 1
583 'ColorMAXChanges[47,3]' 1
584 'ColorMAXChanges[48,1]' 1
585 'ColorMAXChanges[48,2]' 1
586 'ColorMAXChanges[48,3]' 1
587 'ColorMAXChanges[49,1]' 1
588 'ColorMAXChanges[49,2]' 1
589 'ColorMAXChanges[49,3]' 1
;
Parameter adjustment#
Let us manually adjust solver settings and see if this improves performance.
ampl.option["reset_initial_guesses"] = (
1 # Don't send the known solution as initial guess
)
ampl.option["mp_options"] = "outlev=1 " + "mip:sbestimate=6 " + "mip:sbeffort=0.25"
ampl.solve()
XPRESS 9.8.0 (46.01.01): tech:outlev = 1
mip:sbestimate = 6
mip:sbeffort = 0.25
AMPL MP initial flat model has 710 variables (300 integer, 395 binary);
Objectives: 1 linear;
Constraints: 10 linear;
Algebraic expressions: 5 count;
Logical expressions: 917 conditional (in)equalitie(s); 297 and; 269 not; 589 or;
AMPL MP final model has 2981 variables (894 integer, 2072 binary);
Objectives: 1 linear;
Constraints: 379 linear;
Logical expressions: 297 and; 617 indeq; 589 or;
FICO Xpress v9.8.0, Hyper, solve started 16:56:35, Mar 3, 2026
Heap usage: 1398KB (peak 1398KB, 54KB system)
Minimizing MILP using up to 8 threads and up to 16GB memory, with these control settings:
SBESTIMATE = 6
SBEFFORT = .25
Original problem has:
996 rows 2981 cols 2270 elements 2178 entities
617 inds
886 gencons
Presolved problem has:
1750 rows 1168 cols 7208 elements 1153 entities
LP relaxation tightened
Presolve finished in 0 seconds
Heap usage: 5518KB (peak 6248KB, 190KB system)
Coefficient range original solved
Coefficients [min,max] : [ 1.00e+00, 5.00e+00] / [ 6.25e-02, 1.88e+00]
RHS and bounds [min,max] : [ 1.00e+00, 1.50e+01] / [ 2.50e-01, 3.90e+01]
Objective [min,max] : [ 6.55e-01, 1.00e+01] / [ 6.55e-01, 1.00e+01]
Autoscaling applied standard scaling
Symmetric problem: generators: 2, support set: 711
Number of orbits: 237, largest orbit: 3
Row orbits: 326, row support: 978
Will try to keep branch and bound tree memory usage below 15.1GB
*** Solution found: 387.306070 Time: 0.05 Heuristic: e ***
Starting concurrent solve with dual (1 thread)
Concurrent-Solve, 0s
Dual
objective sum inf
P 8.8582631 .0000000
------- optimal --------
Concurrent statistics:
Dual: 1286 simplex iterations, 0.02s
Optimal solution found
Its Obj Value S Ninf Nneg Sum Inf Time
1286 8.858263 P 0 0 .000000 0
Dual solved problem
1286 simplex iterations in 0.02 seconds at time 0
Final objective : 8.858263143934892e+00
Max primal violation (abs/rel) : 1.110e-15 / 1.110e-15
Max dual violation (abs/rel) : 7.105e-15 / 7.105e-15
Max complementarity viol. (abs/rel) : 0.0 / 0.0
Starting root cutting & heuristics
Deterministic mode with up to 2 additional threads
Its Type BestSoln BestBound Sols Add Del Gap GInf Time
a 174.620879 8.858263 2 94.93% 0 0
1 K 174.620879 10.031479 2 651 0 94.26% 415 0
P 173.040639 10.031479 3 94.20% 0 0
P 170.694632 10.031479 4 94.12% 0 0
P 129.053008 10.031479 5 92.23% 0 0
P 108.266420 10.031479 6 90.73% 0 0
P 107.266420 10.031479 7 90.65% 0 0
P 106.266420 10.031479 8 90.56% 0 0
P 105.266420 10.031479 9 90.47% 0 0
P 83.409770 10.031479 10 87.97% 0 0
P 82.409770 10.031479 11 87.83% 0 0
P 79.053727 10.031479 12 87.31% 0 0
P 78.829529 10.031479 13 87.27% 0 0
P 77.829529 10.031479 14 87.11% 0 0
P 74.249288 10.031479 15 86.49% 0 0
2 K 74.249288 10.618005 15 244 447 85.70% 656 0
P 66.669048 10.618005 16 84.07% 0 0
P 64.669048 10.618005 17 83.58% 0 0
P 54.508566 10.618005 18 80.52% 0 0
P 53.732763 10.618005 19 80.24% 0 0
P 53.508566 10.618005 20 80.16% 0 0
P 52.508566 10.618005 21 79.78% 0 0
P 51.508566 10.618005 22 79.39% 0 0
P 44.928325 10.618005 23 76.37% 0 0
P 42.928325 10.618005 24 75.27% 0 0
3 K 42.928325 10.900395 24 136 174 74.61% 536 0
P 41.928325 10.900395 25 74.00% 0 0
P 40.928325 10.900395 26 73.37% 0 0
P 39.928325 10.900395 27 72.70% 0 0
4 K 39.928325 11.310295 27 137 104 71.67% 468 0
P 38.928325 11.310295 28 70.95% 0 0
P 36.928325 11.310295 29 69.37% 0 0
5 K 36.928325 11.374333 29 211 119 69.20% 471 0
6 K 36.928325 11.424315 29 86 146 69.06% 476 0
7 K 36.928325 11.450172 29 73 69 68.99% 534 0
8 K 36.928325 11.527816 29 88 49 68.78% 522 0
9 K 36.928325 11.653084 29 146 143 68.44% 530 0
q 22.858263 11.753555 30 48.58% 0 0
10 K 22.858263 11.753555 30 83 79 48.58% 525 0
11 K 22.858263 11.930751 30 78 71 47.81% 494 0
12 K 22.858263 12.167057 30 205 127 46.77% 422 0
13 K 22.858263 12.250232 30 173 148 46.41% 459 0
14 K 22.858263 12.367191 30 164 129 45.90% 324 0
15 K 22.858263 12.528982 30 117 166 45.19% 395 0
16 K 22.858263 12.573604 30 73 119 44.99% 290 0
17 K 22.858263 12.592551 30 56 30 44.91% 285 0
18 K 22.858263 12.601555 30 26 50 44.87% 278 0
19 K 22.858263 12.603192 30 31 18 44.86% 275 0
20 K 22.858263 12.609901 30 18 20 44.83% 273 0
21 K 22.858263 12.613684 30 20 30 44.82% 287 0
22 K 22.858263 12.615898 30 39 46 44.81% 302 0
23 K 22.858263 12.618380 30 35 31 44.80% 293 0
24 K 22.858263 12.620199 30 32 21 44.79% 293 0
25 K 22.858263 12.634125 30 26 264 44.73% 269 0
26 G 22.858263 12.774378 30 40 0 44.11% 270 0
27 G 22.858263 12.923963 30 53 99 43.46% 307 0
Cuts in the matrix : 342
Cut elements in the matrix : 8244
Performing root presolve...
Reduced problem has: 1301 rows 551 columns 10045 elements
Presolve dropped : 791 rows 617 columns 5407 elements
Symmetric problem: generators: 2, support set: 153
Number of orbits: 51, largest orbit: 3
Row orbits: 89, row support: 267
Will try to keep branch and bound tree memory usage below 15.1GB
Crash basis containing 147 structural columns created
Its Obj Value S Ninf Nneg Sum Inf Time
8141 9.114682 P 0 0 .000000 0
Optimal solution found
Dual solved problem
8141 simplex iterations in 0.01 seconds at time 0
Final objective : 9.114682343403359e+00
Max primal violation (abs/rel) : 2.220e-16 / 2.220e-16
Max dual violation (abs/rel) : 0.0 / 0.0
Max complementarity viol. (abs/rel) : 0.0 / 0.0
Starting root cutting & heuristics
Deterministic mode with up to 2 additional threads
Its Type BestSoln BestBound Sols Add Del Gap GInf Time
1 K 22.858263 13.126183 30 64 99 42.58% 287 0
2 K 22.858263 13.199209 30 30 181 42.26% 321 0
Heuristic search 'R' started
Heuristic search 'R' stopped
Cuts in the matrix : 156
Cut elements in the matrix : 3195
Starting tree search.
Deterministic mode with up to 8 running threads and up to 16 tasks.
Heap usage: 12MB (peak 35MB, 607KB system)
Node BestSoln BestBound Sols Active Depth Gap GInf Time
1 22.858263 13.271696 30 2 1 41.94% 297 0
2 22.858263 13.415500 30 2 3 41.31% 294 0
3 22.858263 13.508573 30 3 3 40.90% 280 0
4 22.858263 13.508573 30 4 4 40.90% 274 0
5 22.858263 13.555142 30 5 4 40.70% 279 0
6 22.858263 13.555142 30 6 4 40.70% 209 0
7 22.858263 13.555142 30 7 4 40.70% 278 0
8 22.858263 13.555142 30 8 5 40.70% 88 0
9 22.858263 13.623471 30 9 5 40.40% 242 0
10 22.858263 13.824121 30 10 5 39.52% 228 0
21 22.858263 13.859932 30 20 8 39.37% 77 0
37 22.858263 13.861824 30 28 16 39.36% 105 0
47 22.858263 13.973917 30 40 10 38.87% 196 0
69 22.858263 13.973917 30 52 30 38.87% 40 0
q 75 21.858263 13.973917 31 52 36 36.07% 0 1
80 21.858263 13.973917 31 68 1 36.07% 2 1
95 21.858263 13.973917 31 76 17 36.07% 149 1
118 21.858263 13.973917 31 83 40 36.07% 38 1
q 149 17.858263 13.973917 32 116 35 21.75% 0 1
Elapsed time (sec): 1, estimated tree completion: 0.00042
Heap usage: 60MB (peak 60MB, 818KB system)
B&B tree size: 336k total
Node BestSoln BestBound Sols Active Depth Gap GInf Time
221 17.858263 13.973917 32 82 1 21.75% 2 1
324 17.858263 13.987125 32 100 22 21.68% 52 1
432 17.858263 13.990463 32 152 32 21.66% 58 1
535 17.858263 14.069346 32 191 35 21.22% 18 1
635 17.858263 14.069346 32 245 24 21.22% 69 1
737 17.858263 14.069346 32 280 17 21.22% 111 1
846 17.858263 14.186636 32 336 19 20.56% 29 1
949 17.858263 14.189736 32 372 16 20.54% 101 1
1058 17.858263 14.189736 32 396 21 20.54% 42 1
1166 17.858263 14.299165 32 436 20 19.93% 105 1
1268 17.858263 14.299165 32 455 16 19.93% 96 1
1368 17.858263 14.299165 32 463 13 19.93% 109 1
1471 17.858263 14.299165 32 491 18 19.93% 37 2
1575 17.858263 14.299165 32 511 24 19.93% 101 2
1680 17.858263 14.299165 32 533 20 19.93% 40 2
1782 17.858263 14.428325 32 561 17 19.21% 96 2
q 1868 16.928325 14.428325 33 591 13 14.77% 0 2
2110 16.928325 14.428325 33 355 1 14.77% 2 2
2214 16.928325 14.428325 33 369 1 14.77% 2 2
2318 16.928325 14.428325 33 375 18 14.77% 174 2
Elapsed time (sec): 2, estimated tree completion: 0.27327
Heap usage: 126MB (peak 126MB, 1096KB system)
B&B tree size: 1.8MB total
Node BestSoln BestBound Sols Active Depth Gap GInf Time
2421 16.928325 14.514313 33 398 23 14.26% 146 2
2523 16.928325 14.514313 33 401 1 14.26% 2 2
2631 16.928325 14.518826 33 395 16 14.23% 88 2
2738 16.928325 14.518826 33 396 15 14.23% 137 2
2853 16.928325 14.518826 33 383 24 14.23% 38 2
2957 16.928325 14.518826 33 387 15 14.23% 86 2
3057 16.928325 14.518826 33 392 12 14.23% 133 2
3165 16.928325 14.523405 33 401 21 14.21% 50 2
3270 16.928325 14.537249 33 401 16 14.12% 192 2
3371 16.928325 14.537249 33 396 20 14.12% 39 2
3477 16.928325 14.537249 33 402 13 14.12% 122 2
3579 16.928325 14.537249 33 403 13 14.12% 65 2
3685 16.928325 14.618792 33 396 19 13.64% 92 2
3785 16.928325 14.618792 33 407 28 13.64% 59 2
3890 16.928325 14.765557 33 407 25 12.78% 38 2
3992 16.928325 14.765557 33 396 12 12.78% 64 3
4092 16.928325 14.765557 33 394 13 12.78% 143 3
4195 16.928325 14.953008 33 371 30 11.67% 25 3
4299 16.928325 14.953008 33 366 16 11.67% 94 3
4406 16.928325 14.963144 33 336 20 11.61% 105 3
Elapsed time (sec): 3, estimated tree completion: 0.78700
Heap usage: 126MB (peak 126MB, 1096KB system)
B&B tree size: 2.4MB total
Node BestSoln BestBound Sols Active Depth Gap GInf Time
4517 16.928325 14.975981 33 319 29 11.53% 20 3
4621 16.928325 14.981675 33 304 21 11.50% 72 3
4724 16.928325 14.997455 33 305 14 11.41% 87 3
4826 16.928325 14.997455 33 286 24 11.41% 9 3
4926 16.928325 14.997455 33 248 13 11.41% 61 3
5026 16.928325 15.009350 33 228 18 11.34% 155 3
5129 16.928325 15.071985 33 183 25 10.97% 60 3
5229 16.928325 15.159958 33 144 19 10.45% 83 3
5335 16.928325 15.159958 33 66 20 10.45% 84 3
5435 16.928325 15.259026 33 56 15 9.86% 147 3
5535 16.928325 15.320438 33 40 13 9.50% 100 3
5636 16.928325 15.320438 33 22 17 9.50% 48 3
5744 16.928325 15.650473 33 31 28 7.55% 37 3
5846 16.928325 15.830323 33 30 18 6.49% 77 3
5946 16.928325 15.928325 33 15 17 5.91% 68 3
*** Search completed ***
Uncrunching matrix
Final MIP objective : 1.692832483996361e+01
Final MIP bound : 1.692830791163877e+01
Solution time / primaldual integral : 3.68s/ 27.497451%
Work / work units per second : 4.66 / 1.27
Number of solutions found / nodes : 33 / 5995
Max primal violation (abs/rel) : 2.442e-15 / 2.442e-15
Max integer violation (abs ) : 4.885e-15
XPRESS 9.8.0 (46.01.01): optimal solution; objective 16.92832484
438820 simplex iterations
5995 branching nodes
absmipgap=1.69283e-05, relmipgap=1e-06
Retrieve solution as a Pandas dataframe#
ampl.var["slot_pattern"].to_pandas()
| slot_pattern.val | |
|---|---|
| 1 | 3 |
| 2 | 3 |
| 3 | 2 |
| 4 | 2 |
| 5 | 2 |
| 6 | 2 |
| 7 | 2 |
| 8 | 2 |
| 9 | 2 |
| 10 | 1 |
| 11 | 1 |
| 12 | 1 |
| 13 | 1 |
| 14 | 1 |
| 15 | 1 |
| 16 | 1 |
| 17 | 1 |
| 18 | 1 |
| 19 | 0 |
| 20 | 0 |
| 21 | 5 |
| 22 | 5 |
| 23 | 5 |
| 24 | 5 |
| 25 | 5 |
| 26 | 5 |
| 27 | 5 |
| 28 | 5 |
| 29 | 5 |
| 30 | 5 |
| 31 | 5 |
| 32 | 5 |
| 33 | 4 |
| 34 | 4 |
| 35 | 4 |
| 36 | 4 |
| 37 | 4 |
| 38 | 4 |
| 39 | 4 |
| 40 | 4 |
| 41 | 4 |
| 42 | 4 |
| 43 | 2 |
| 44 | 2 |
| 45 | 2 |
| 46 | 2 |
| 47 | 2 |
| 48 | 2 |
| 49 | 2 |
| 50 | 2 |
Conclusion#
Manual parameter adjustment FICO Xpress 9.8.0 reduced solve time from 4.34s to 3.68s on Mac M1 Pro. With enough preparation time, Xpress Tuner is recommended for automatic adjustment (AMPL Xpress option tech:xprs_tunemode).
